Documentation / Advanced Configurations

AWS Template

AWS CloudFormation Scanner

Some teams must provision every AWS resource through an approved CloudFormation template. Prancer supports this by spinning up the pentest scanner (Task Definition, Cluster, Security Group, etc.) from a CloudFormation JSON/YAML you keep in Git, instead of letting Prancer create resources directly.

Before you start

  • A Git repository (private or public) and an access token that can clone it. See PAC file on Git.
  • An AWS account with permissions to deploy CloudFormation stacks and run ECS Fargate tasks.
  • A CloudFormation template based on the sample ECS template, with these placeholders parameterised:
  • Family, ExecutionRoleArn, TaskRoleArn (under MyTaskDefinition)
  • Name, Image (under ContainerDefinitions)
  • ClusterName (under ECSCluster)
  • GroupDescription (under EcsSecurityGroup)
Tip: Two image sources are supported:
- prancer/prancer-pac → resolves to hub.docker.com/prancer/prancer-pac:latest.

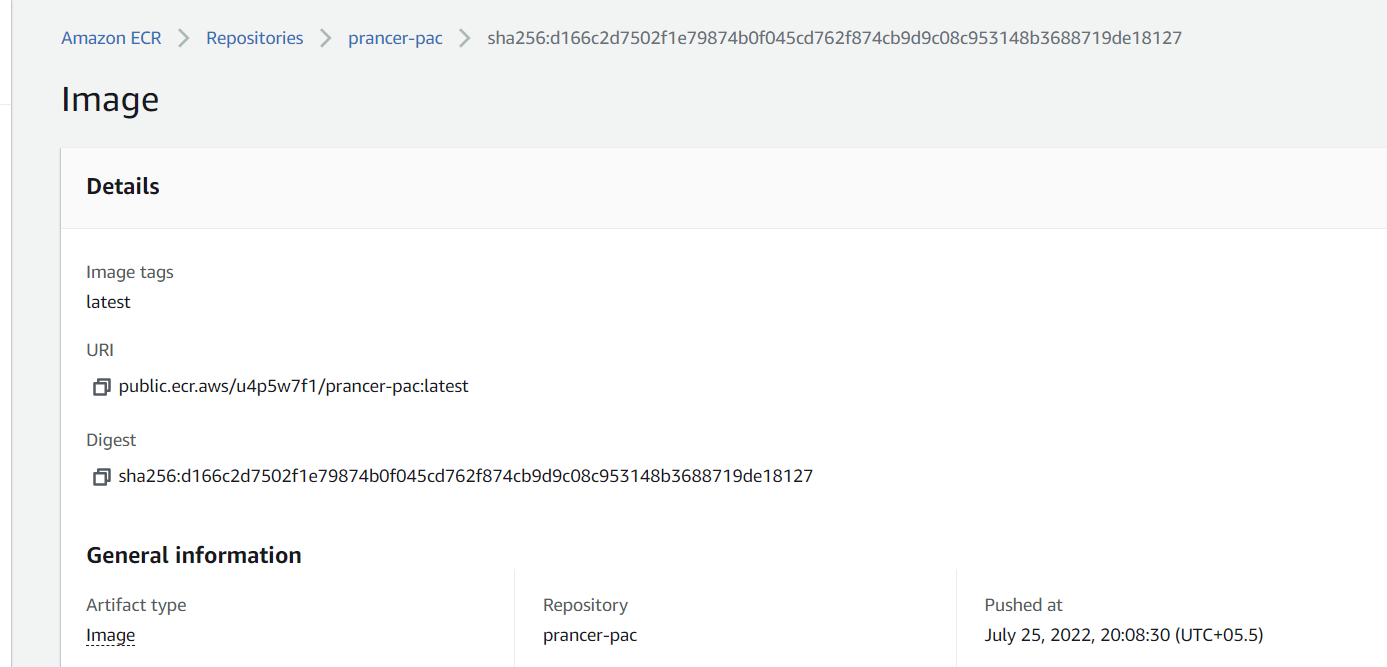

- public.ecr.aws/u4p5w7f1/prancer-pac:latest → pulls from Amazon's public ECR.

!AWS ECR image example

1. Create the PAC application

Follow Create PAC Config (AWS) to scaffold the application.

2. Upload the Git connector

Follow PAC file on Git to register the repository that holds your CloudFormation template.

3. Add the AWS template block to the PAC config

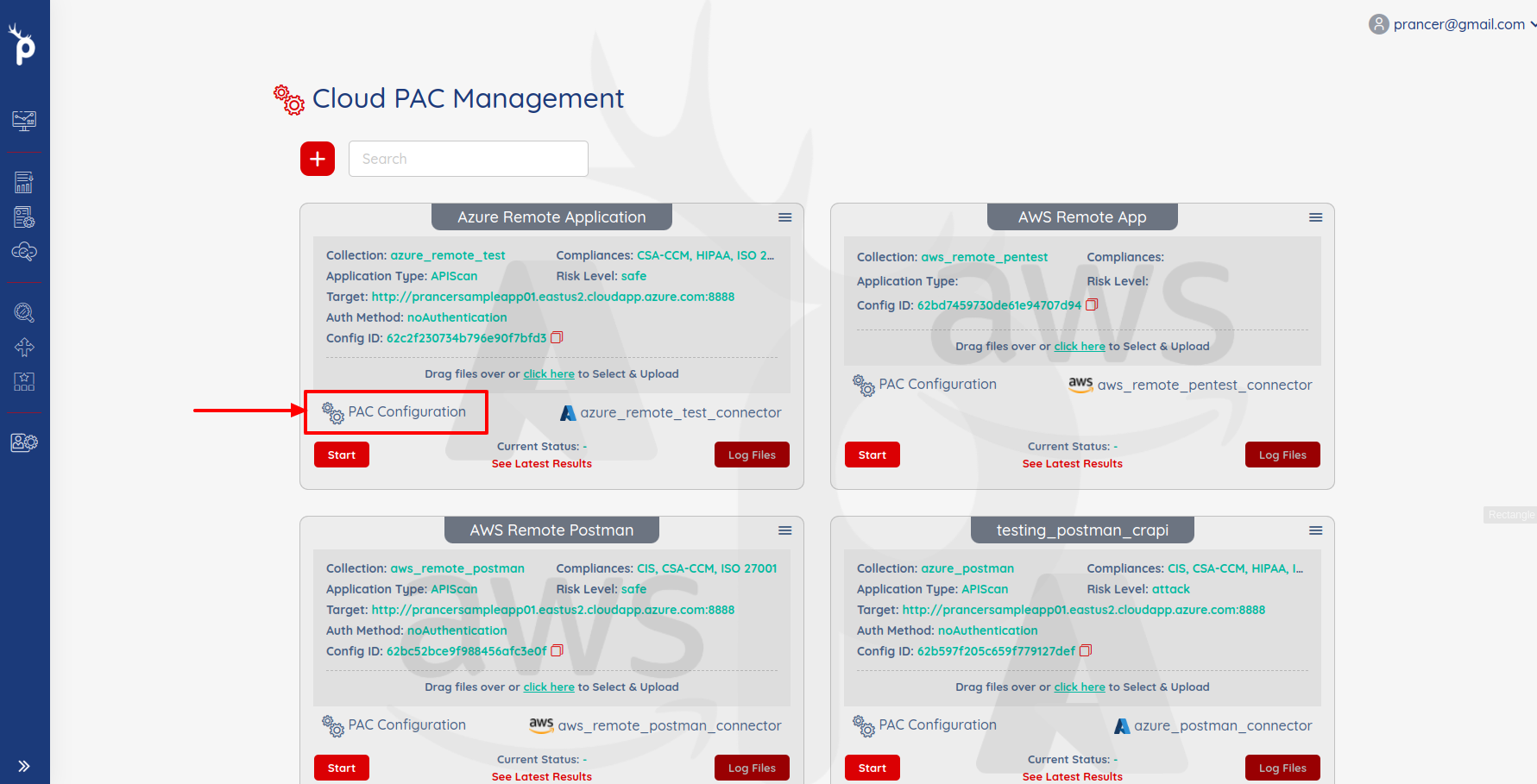

Open PAC Management and edit your PAC configuration.

!Open PAC configuration

Scanner:
  Cloud:
    Platform:
      AWS:
        Connector: <git-connector-name>
        StackName: <stack-name>
        TemplateFile: /cloud-formation/existing/ecs-template.json
        ParamsFile:   /cloud-formation/existing/ecs-params.json

| Field | Description |

| --- | --- |

| Connector * | Git connector that holds the template. |

| TemplateFile * | Path to the CloudFormation template inside the repo. |

| ParamsFile | Optional path to a CloudFormation parameter file. |

| StackName | Name of the CloudFormation stack to create. |

4. Complete PAC file example

Collection: aws
ConnectionName: aws_connector
CloudType: aws
ApplicatioName: template_safe_001
RiskLevel: safe
Compliance: [CIS, HIPAA]
ApplicationType: WebScan
Schedule: onetime
Target: <your target endpoint>
Scanner:
  Cloud:
    Platform:
      AWS:
        AfterRun: delete
        Connector: github_connector_collection
        TemplateFile: /cloud-formation/existing/ecs-template.json
        StackName: prancer-external-scanner
        NewFargate:
          External:
            AccountId: "<account-id>"
            Region: us-west-2
            TaskDefinition: pentest-task
            ClusterName: pentest-cluster
            SecurityGroup: pentest-security-group
            ContainerName: prancer-scanner
            SubnetId: <subnet-id>
AuthenticationMethod: noAuthentication
AddOns:
  - accessControl
  - ascanrulesBeta
  - sqliplugin
Warning: AfterRun: delete removes the stack when the scan finishes. Use keep only for debugging — leftover stacks incur AWS charges.

5. Run the pentest

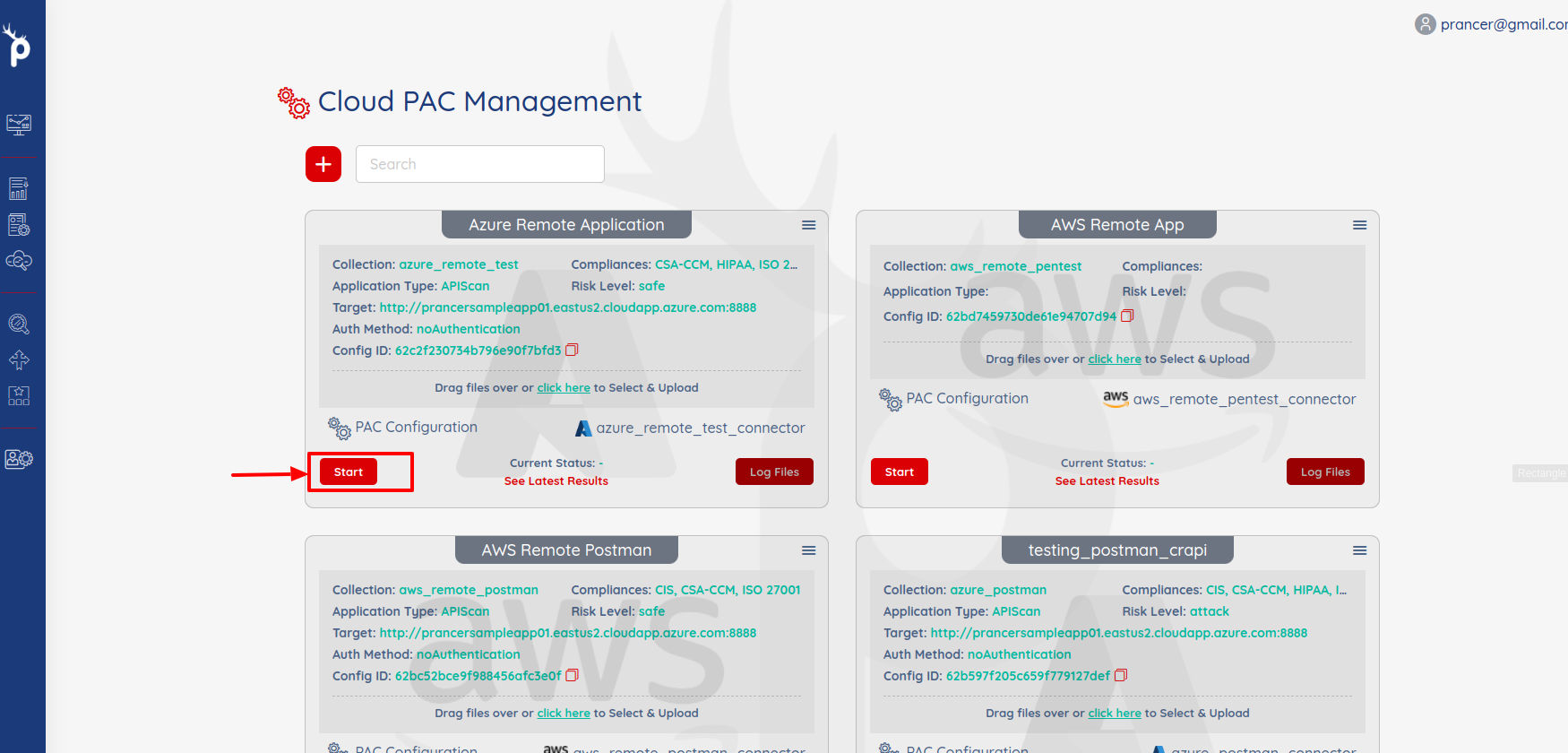

Click Start in PAC Management.

!Run pentest

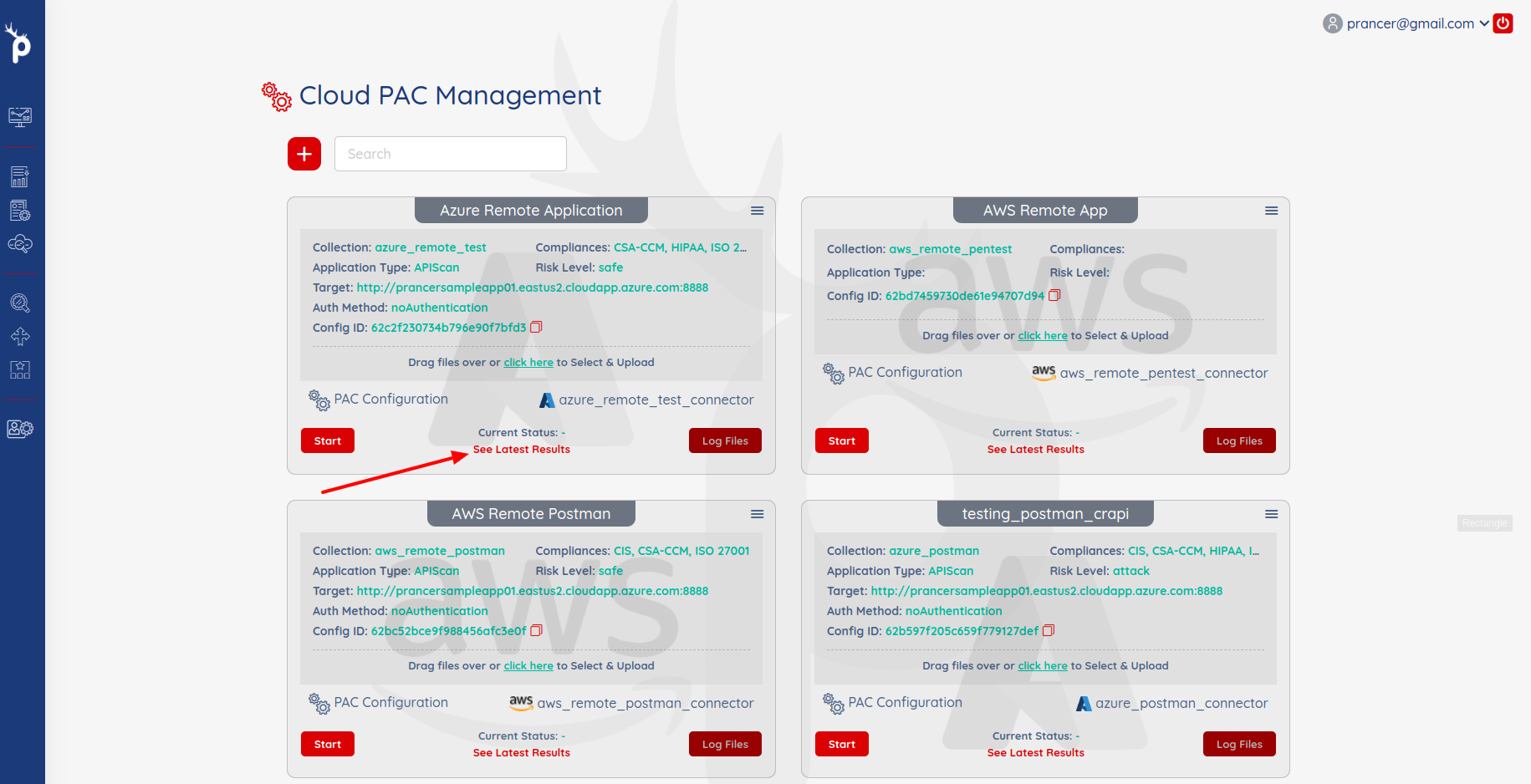

When the scan finishes, open See Latest Results.

!See latest results

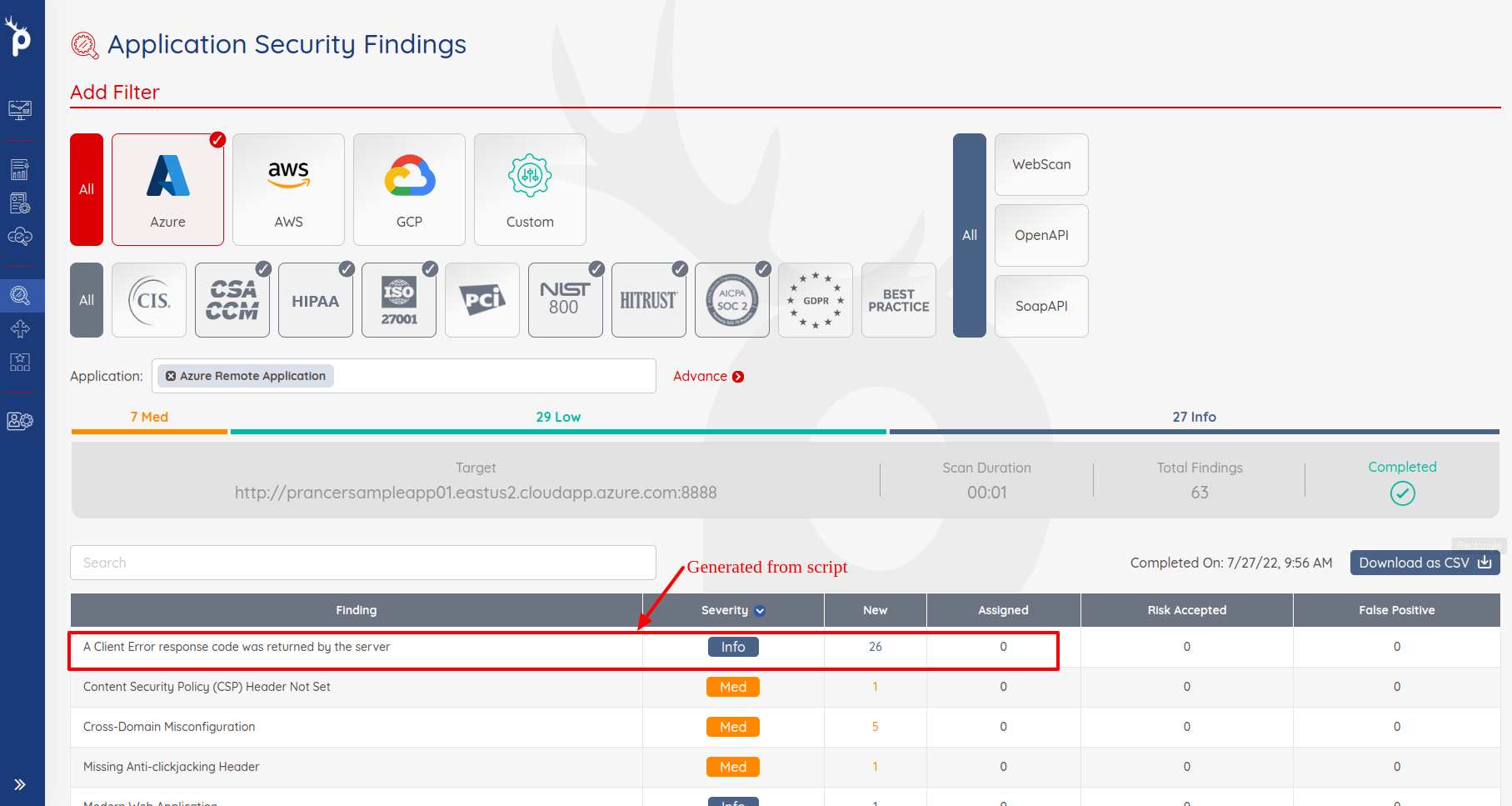

Review findings in Application Security Findings.

!Findings page

Next steps
