Form-Based Authentication

Use form-based auth when your app's login is a classic HTML form posting username + password (URL-encoded) and setting a session cookie — the most common pattern for legacy and server-rendered web apps.

Tip: if your login posts JSON instead of form-encoded data, use JWT or Cookie auth depending on what the response sets.

Before you start

You'll need:

  • The login URL and the POST data format it expects.
  • The logout URL *(excluded so the scanner doesn't log itself out).*
  • Username and password stored in your Key Vault *(Azure)* or Secret Manager *(AWS / GCP)*.
  • A regex or string that only appears in logged-in responses — used as the login indicator.

Walk through the PAC Wizard up to the authentication step before continuing.

Step 1 — Open the auth page

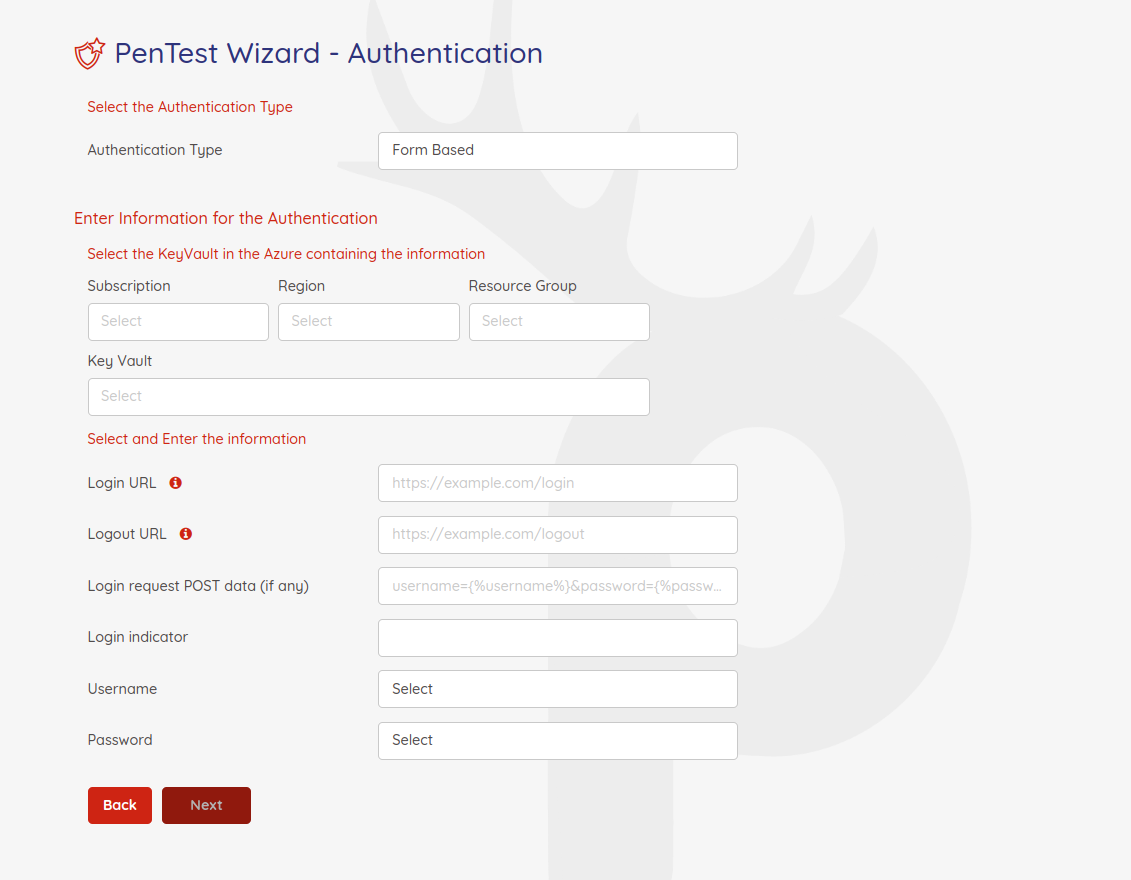

!Auth screen with method picker

Pick Form Based as the authentication type and select the vault holding the credentials.

Step 2 — Fill in the form-based fields

| Field | Sample | Notes |

| ------- | -------- | ------- |

| Key Vault | Any vault the connector can reach | Holds username / password. |

| Login URL | https://sample.com/login | Full URL the scanner POSTs to. |

| Logout URL | https://sample.com/logout | Excluded from scanning. |

| Login Request POST data | username={%username%}&password={%password%} | URL-encoded body. %username% / %password% replaced from the vault. |

| LoginIndicator | Regex like \Q<a href="logout.jsp">Logout</a>\E | Must only appear when logged in. |

| Username / Password | Vault key names | Pick from dropdown. |

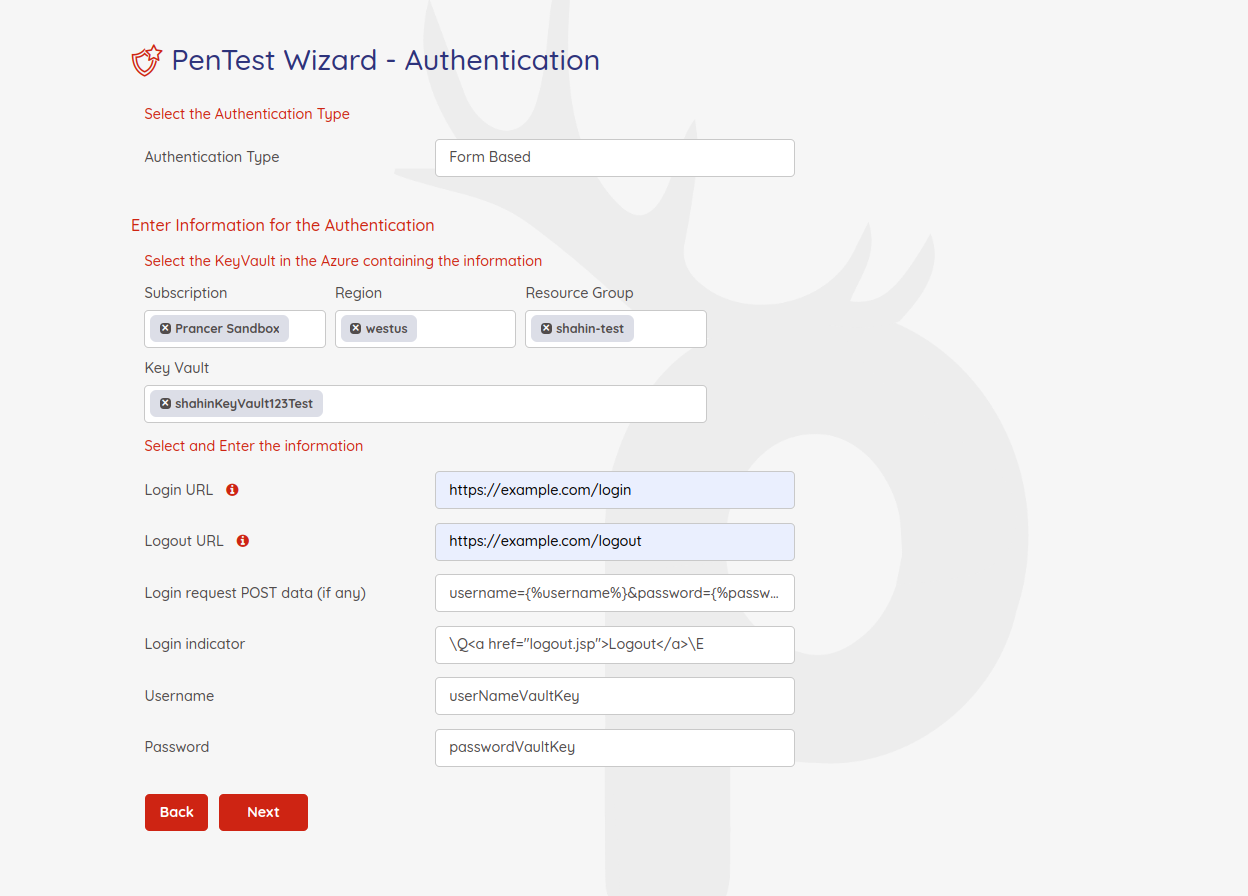

!Filled-in form-based auth form

Warning: the field names in LoginRequestPostData must exactly match what your app's login form expects (e.g. identifier vs username, pwd vs password). Inspect the login network call in your browser if unsure.

Generated PAC YAML

Collection: scenario_azure_cspm
ConnectionName: scenario_azure_cspm_connector
CloudType: azure
ApplicatioName: Formbased Azure App
RiskLevel: standard
Compliance: [CIS]
ApplicationType: WebScan
Schedule: onetime
Target: http://prancersampleapp01.eastus2.cloudapp.azure.com:8888
Scanner:
  Cloud:
    Platform:
      Azure:
        ContainerInstance:
          AfterRun: delete
          NewContainerInstance:
            External:
              SubscriptionId: a6941677-4c37-42fb-960c-dad8f25060a3
              ResourceGp: shahin-test
              Region: westus
              ContainerGroupName: prancer-scanner-group
              ContainerName: prancer-pentest-instance
              ResourceName: prancer-instances
AuthenticationMethod: formBasedAuthentication
Authentication:
  Vault:
    Azure:
      KeyVaultName: shahinKeyVault123Test
      SubscriptionID: a6941677-4c37-42fb-960c-dad8f25060a3
      Region: westus
      ResourceGp: shahin-test
  FormBaseAuth:
    UsernameSecretKey: userNameVaultKey
    PasswordSecretKey: passwordVaultKey
    LoginUrl: /bodgeit/login.jsp
    LogoutUrl: /bodgeit/logout.jsp
    LoginRequestPostData: username={%username%}&password={%password%}
    LoginIndicator: \Q<a href="logout.jsp">Logout</a>\E
