Wizard — IaC GitHub Enterprise (Non-Routable)

When your GitHub Enterprise Server lives entirely on the corporate intranet — no public internet route — Prancer can't clone the repo from its SaaS backend. Instead you run prancer-basic inside your network from a CI pipeline (Azure DevOps or GitHub Actions), and the CLI ships results back to Prancer SaaS.

Before you start

  • A GitHub Enterprise Server containing your IaC repos, reachable only from the corporate network.
  • Permission to create a Personal Access Token (PAT) on the Enterprise Server with repo, admin:repo_hook, and user.
  • An Azure DevOps (or GitHub Actions) pipeline runner with a self-hosted agent that *can* reach the Enterprise Server. (Microsoft-hosted agents can't.)
  • A Prancer User Access Token (generated below).
  • A unique collection name.
Warning: Use a self-hosted agent. Cloud-hosted runners cannot reach intranet-only servers.

1. Create the Prancer collection

Open the Prancer Portal.

!Portal

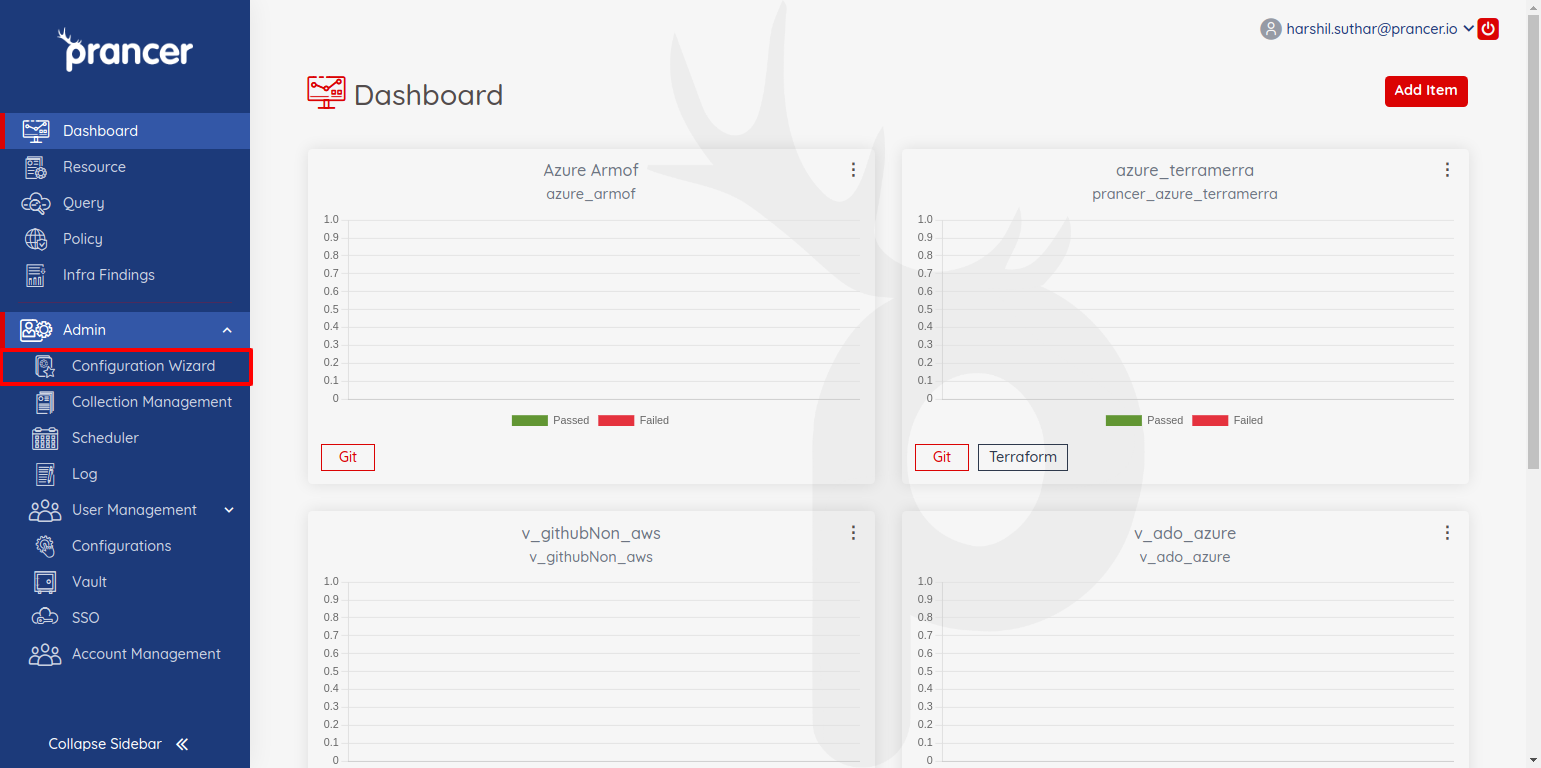

From the sidebar, choose Configuration Wizard.

!Configuration wizard

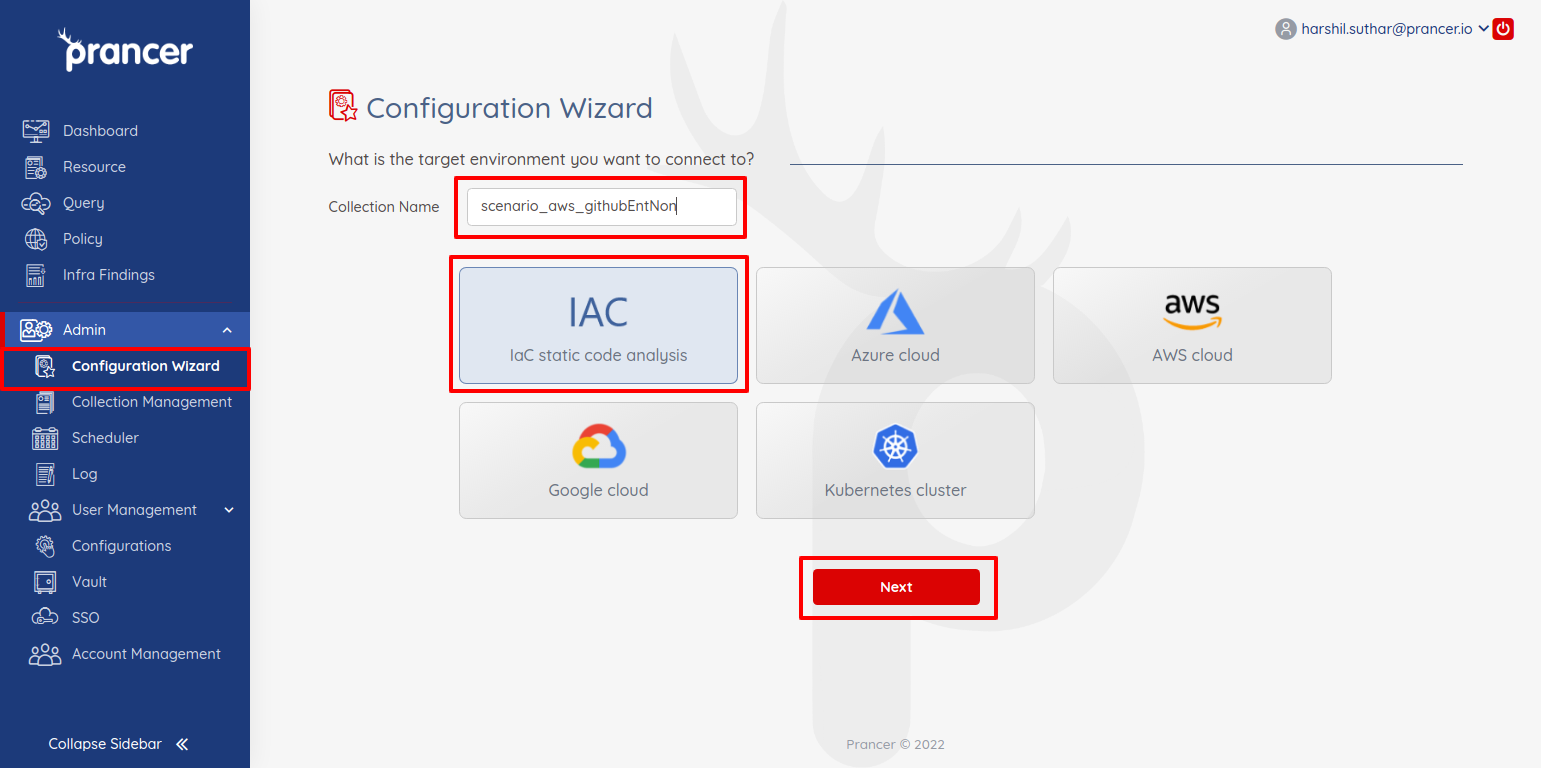

Name the collection, choose IaC, click Next.

!Name collection

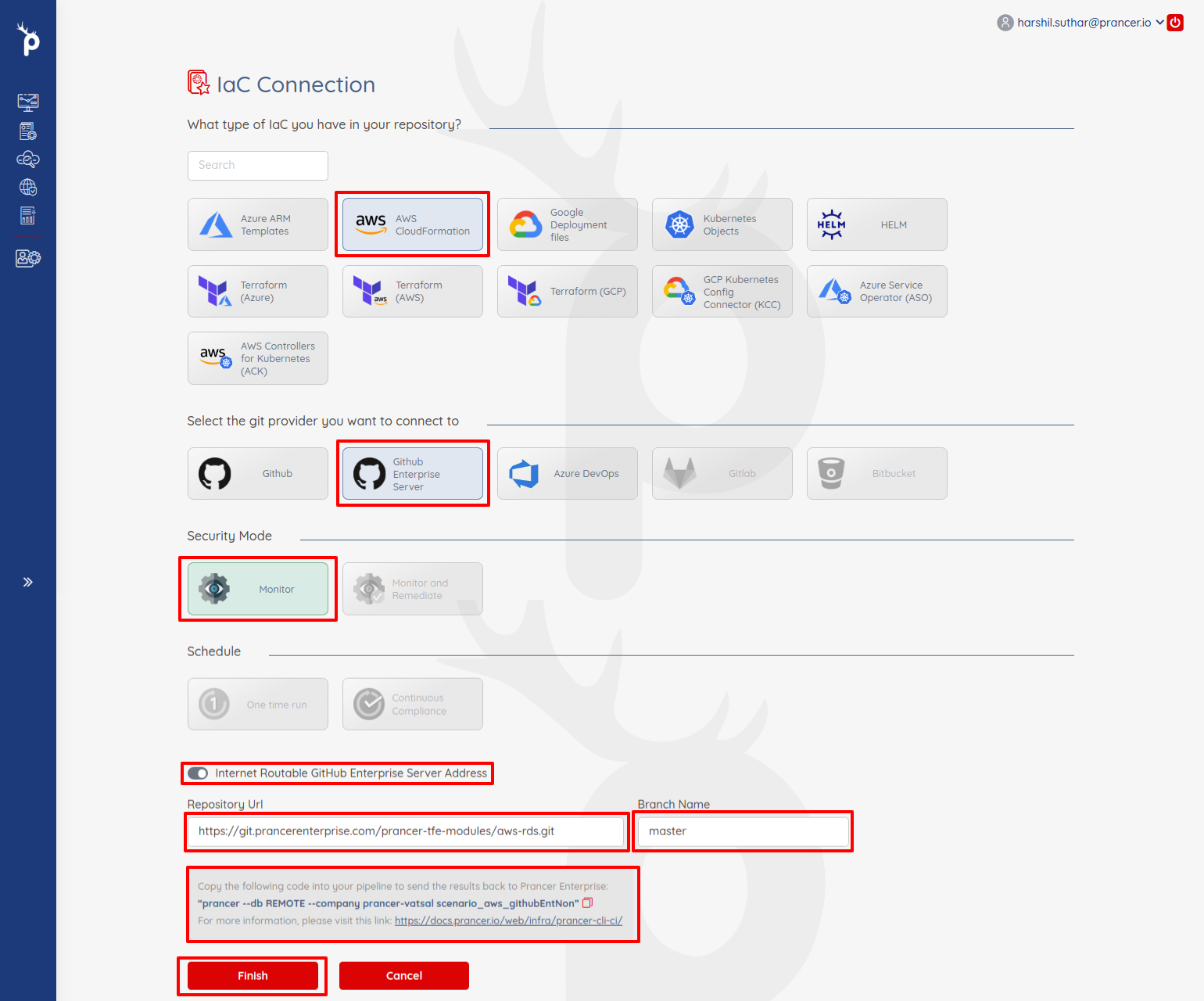

Pick the IaC type (CloudFormation / Terraform / ARM / etc.), select Github Enterprise, then:

  • Only Monitor mode is available for non-routable servers.
  • Disable the *Internet routable Github Enterprise address* toggle.
  • Provide the Repository URL and Branch name.
  • Copy the prancer run command from the Note section — you'll need it in step 4.

!Disable internet-routable toggle

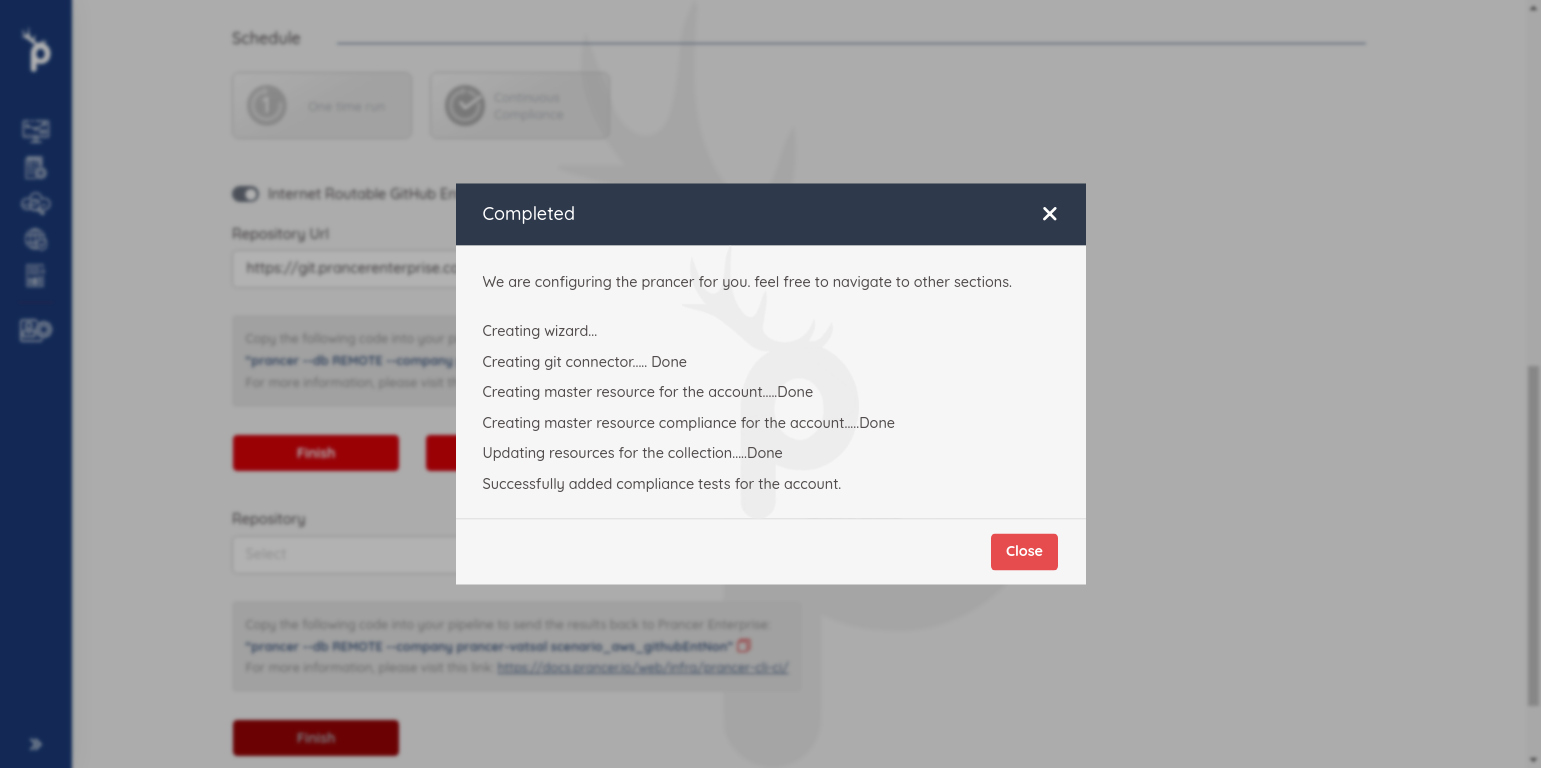

Click Finish to create the collection.

2. Generate a Prancer access token

You'll need this so the CLI can ship results back.

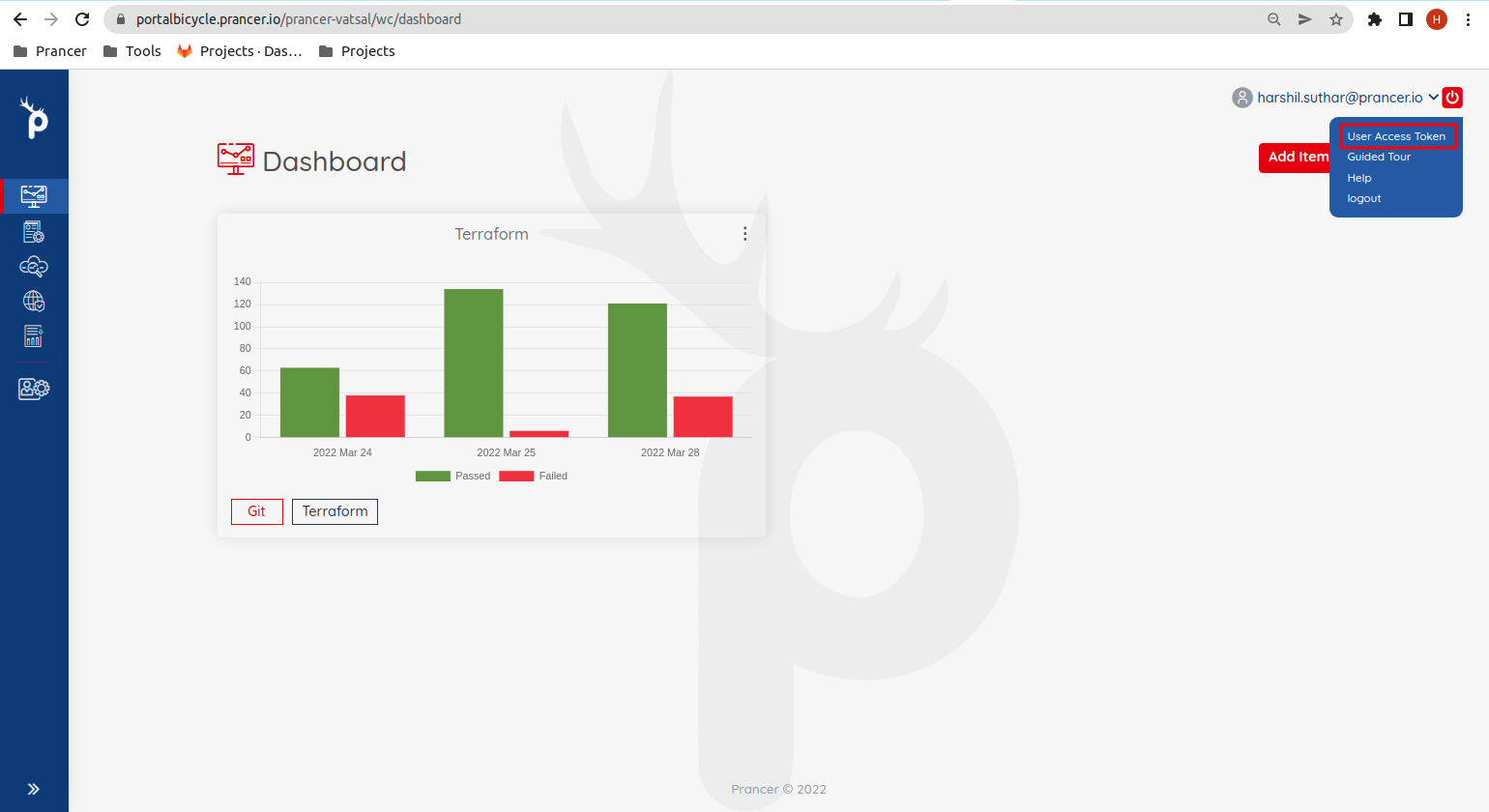

!Profile menu

Open User Access Token from the top-right menu.

!Token page

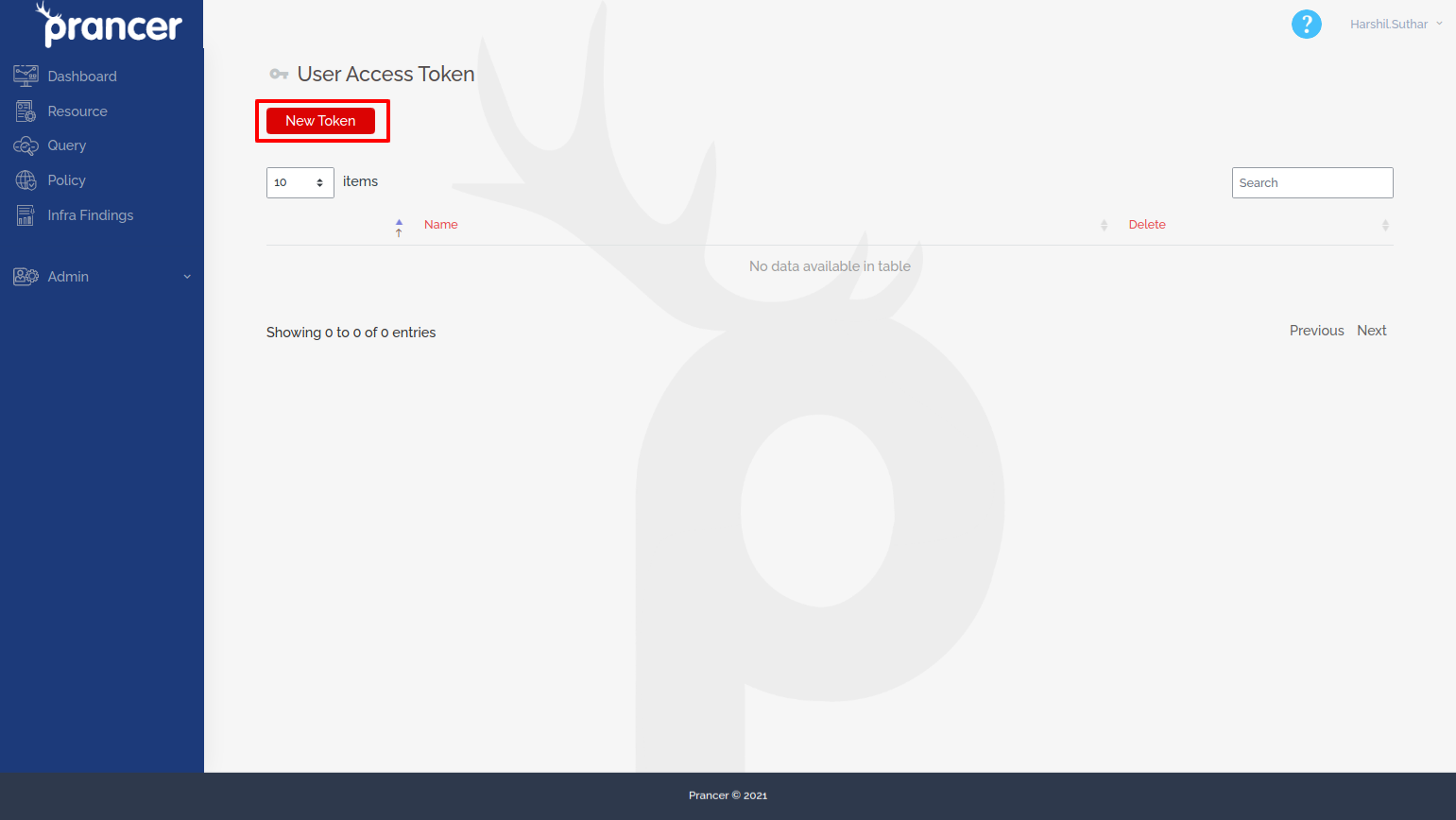

Click New Token.

!New token

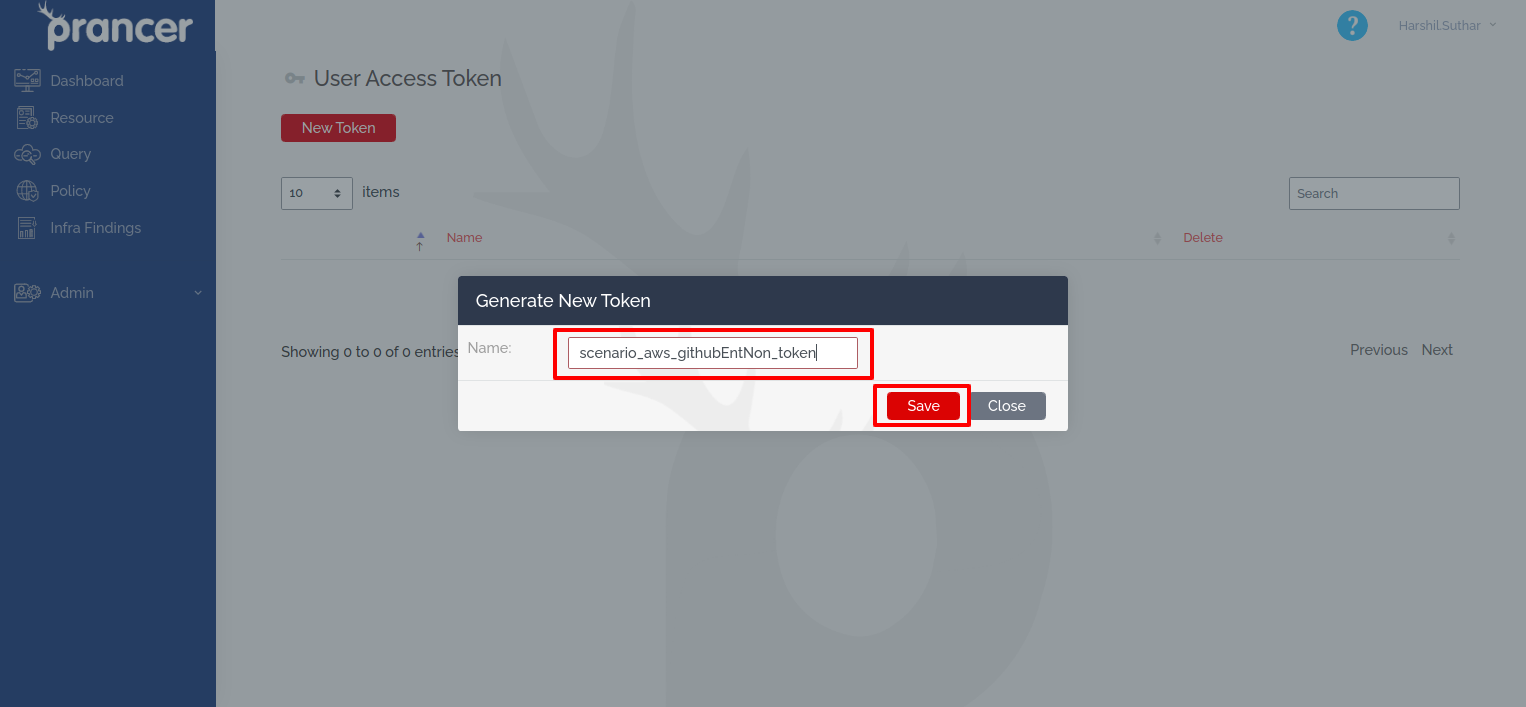

Give it a name and click Save.

!Save token

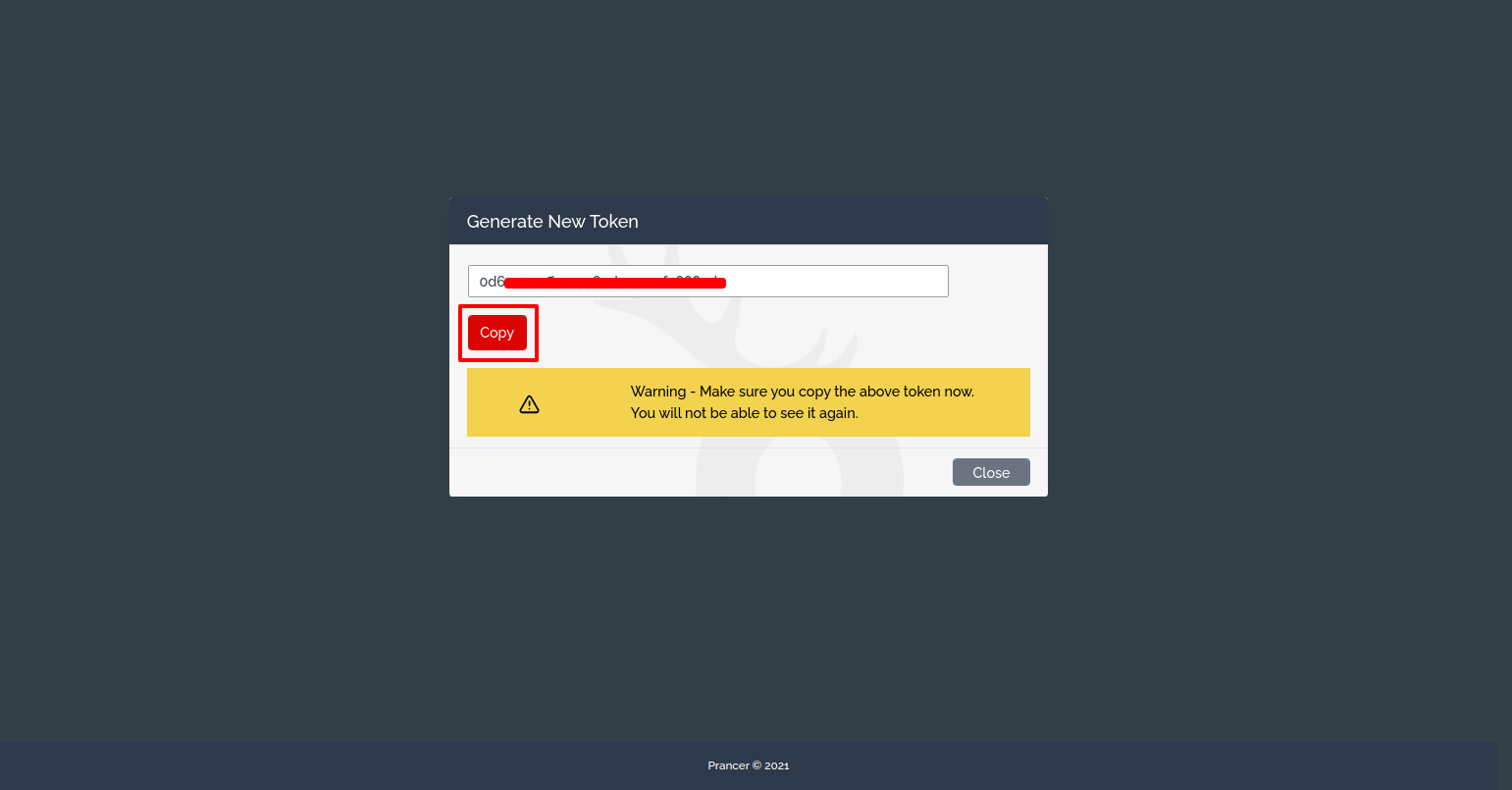

Save the generated token — you'll use it as APITOKEN later.

3. Generate a GitHub Enterprise PAT

!GHE profile

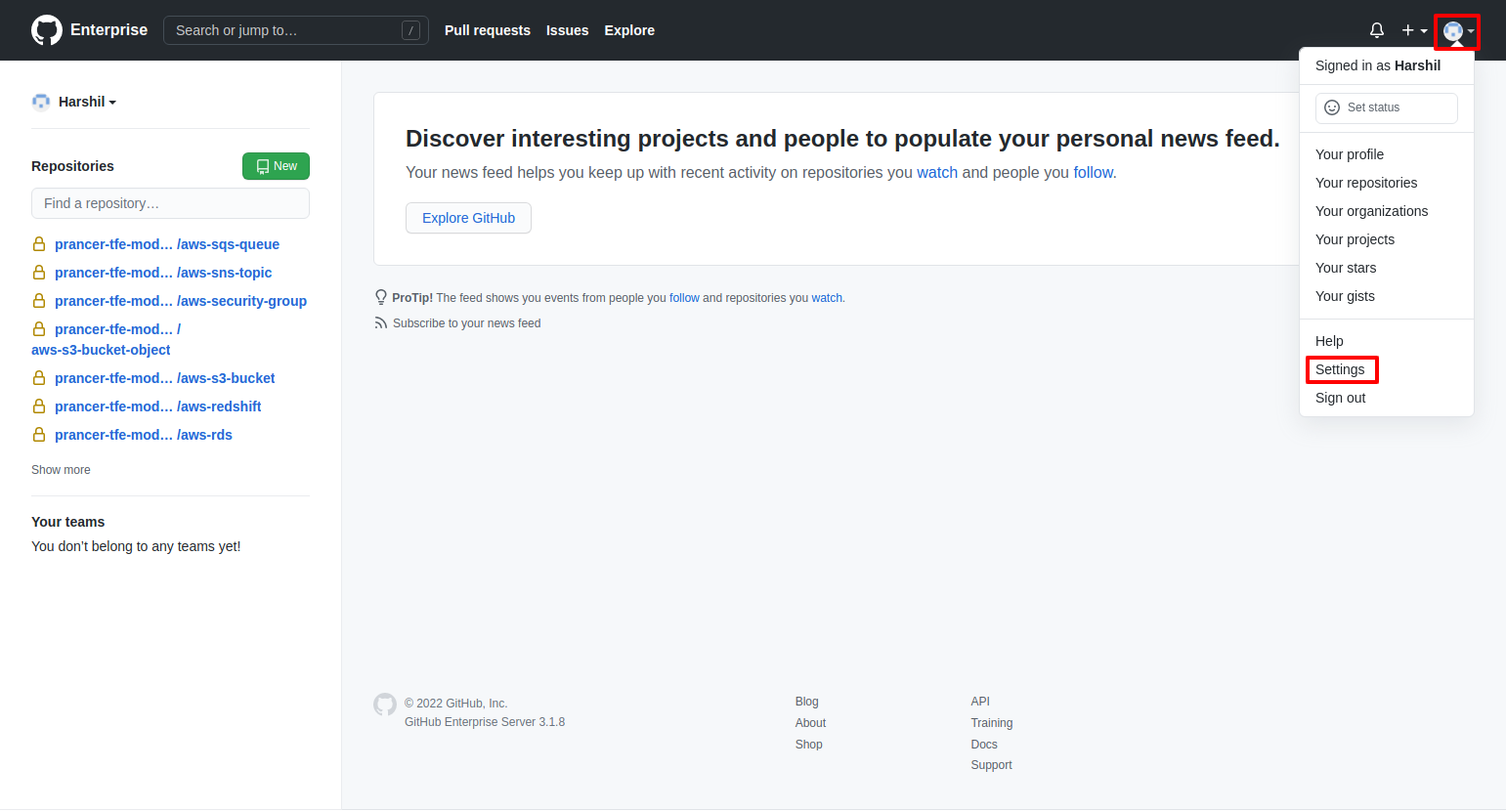

In your GitHub Enterprise Server profile menu, choose Settings.

!Settings

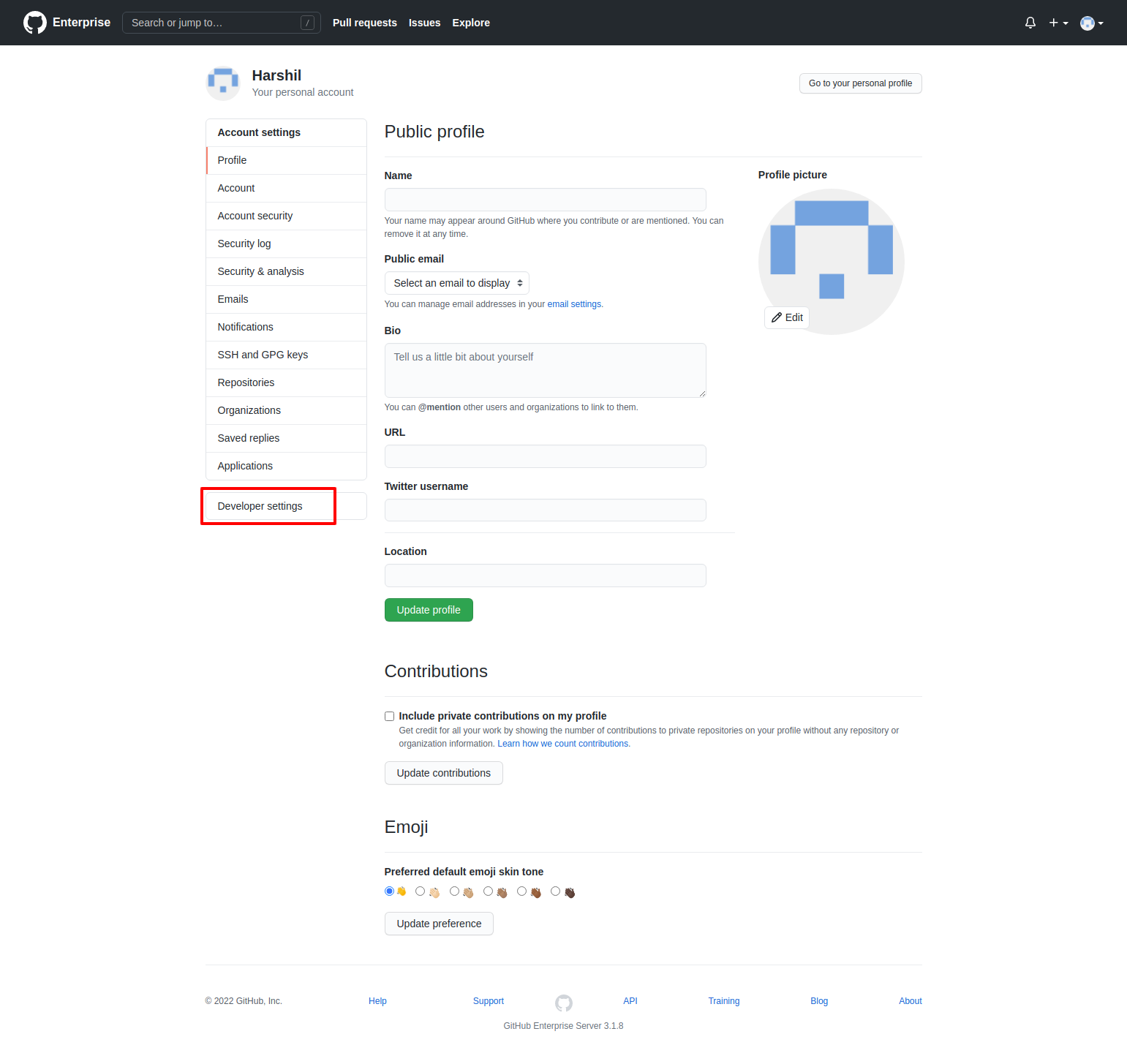

Open Developer settings.

!Developer settings

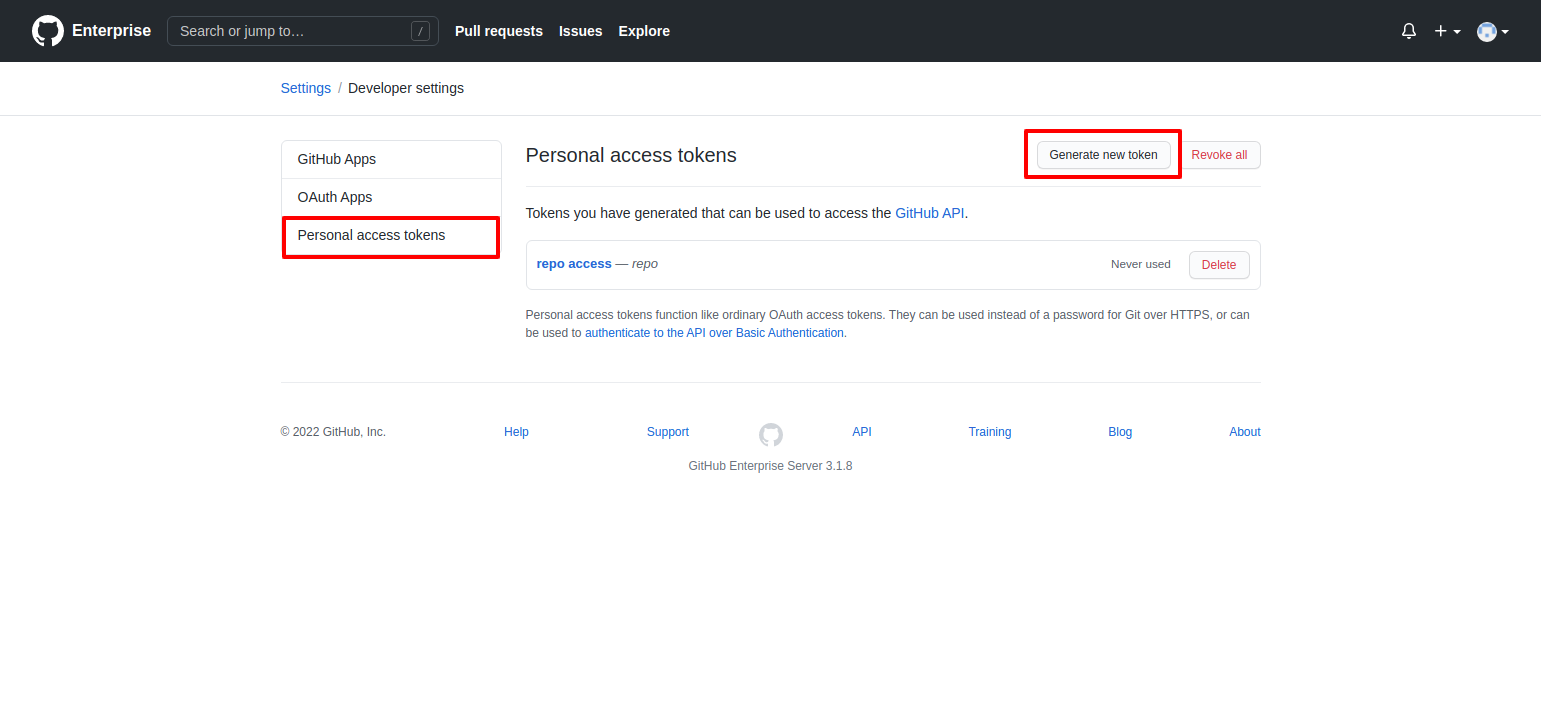

Choose Personal Access Tokens → Generate New Token.

!Generate new token

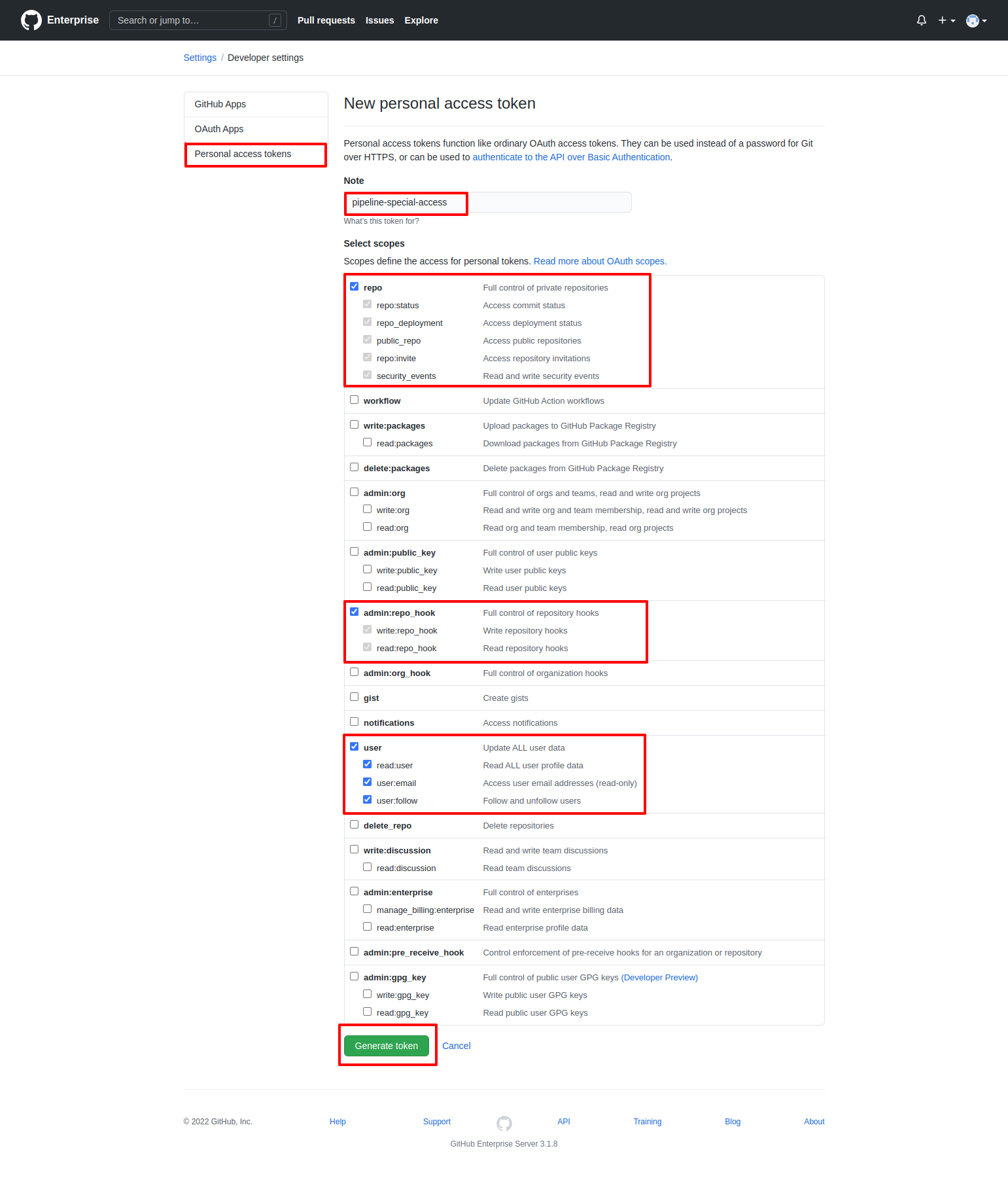

Give it a name and grant user, admin:repo_hook, and repo (all permissions). Click Generate Token.

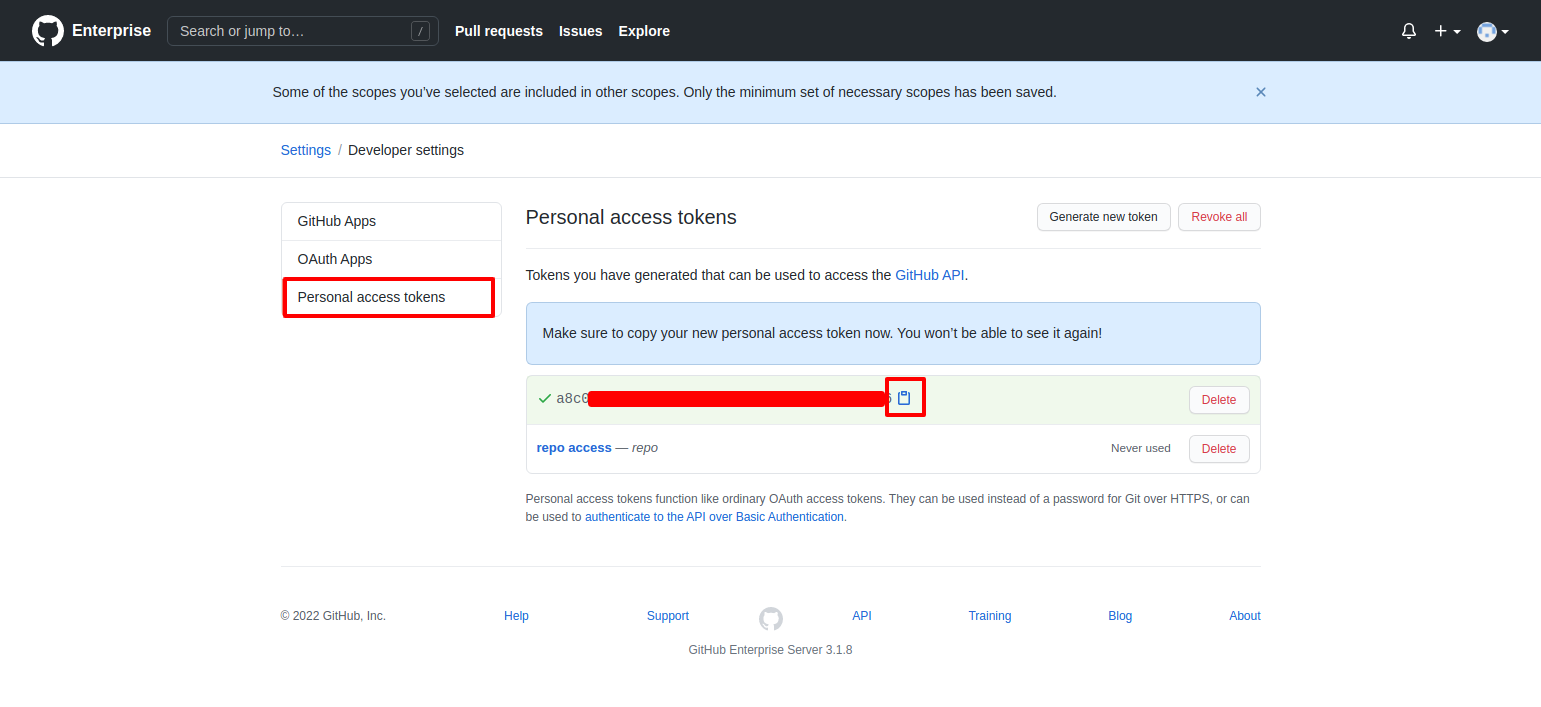

!Token generated

Save the token — you'll use it as GITTOKEN.

4. Create the Azure DevOps pipeline

You now have everything you need. Sample pipelines are also published in Prancer CLI in CI/CD.

!ADO pipeline

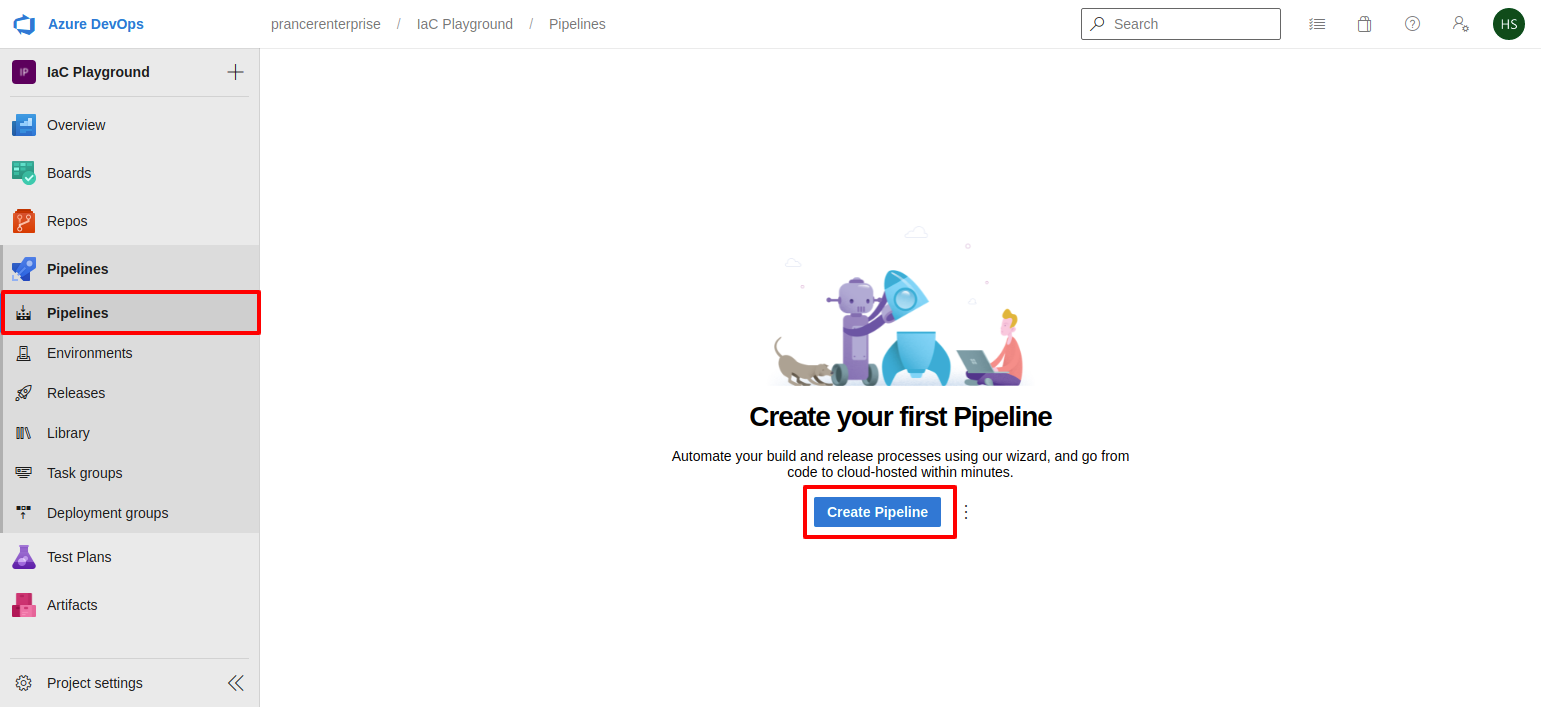

In Azure DevOps, open Pipelines.

!Pipelines

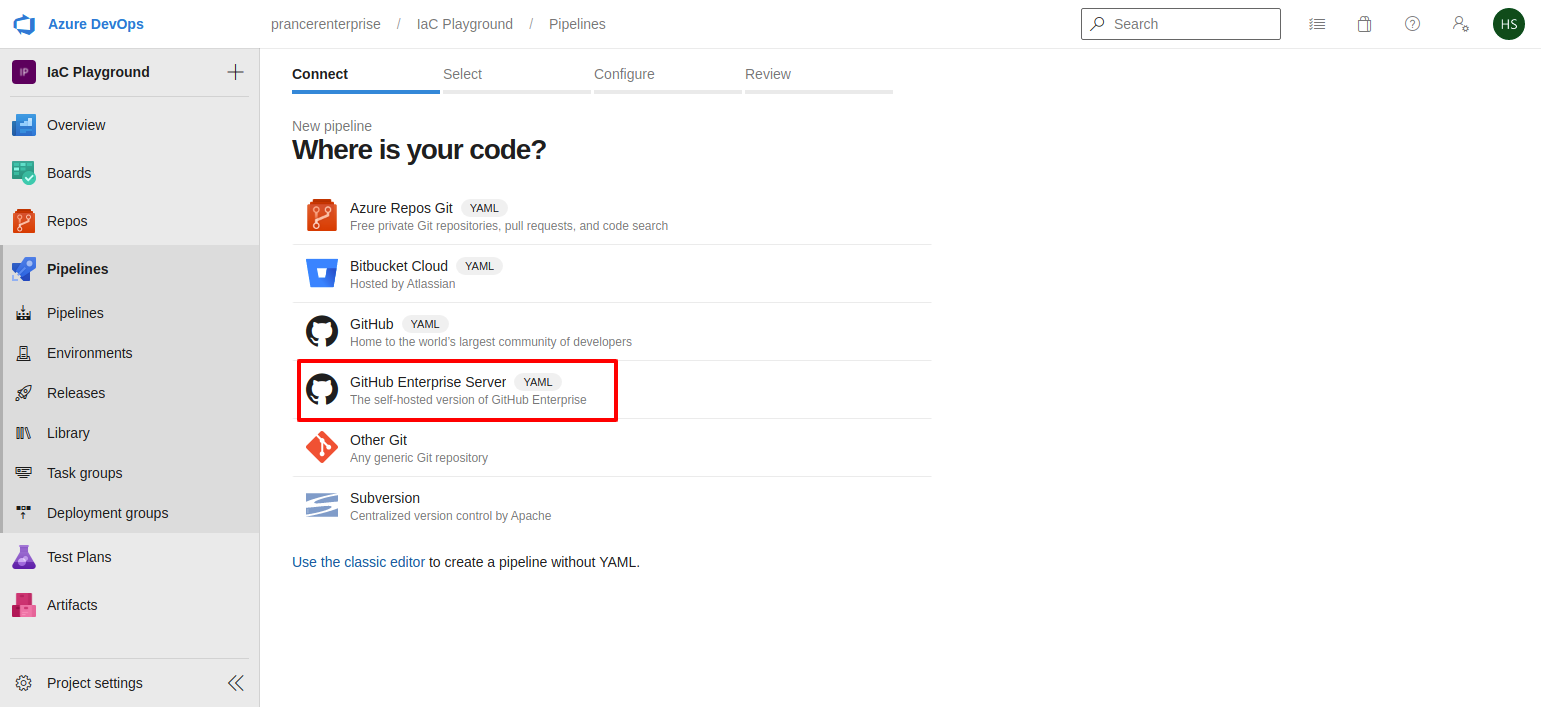

Pick GitHub Enterprise Server from the source list.

!Choose GHE

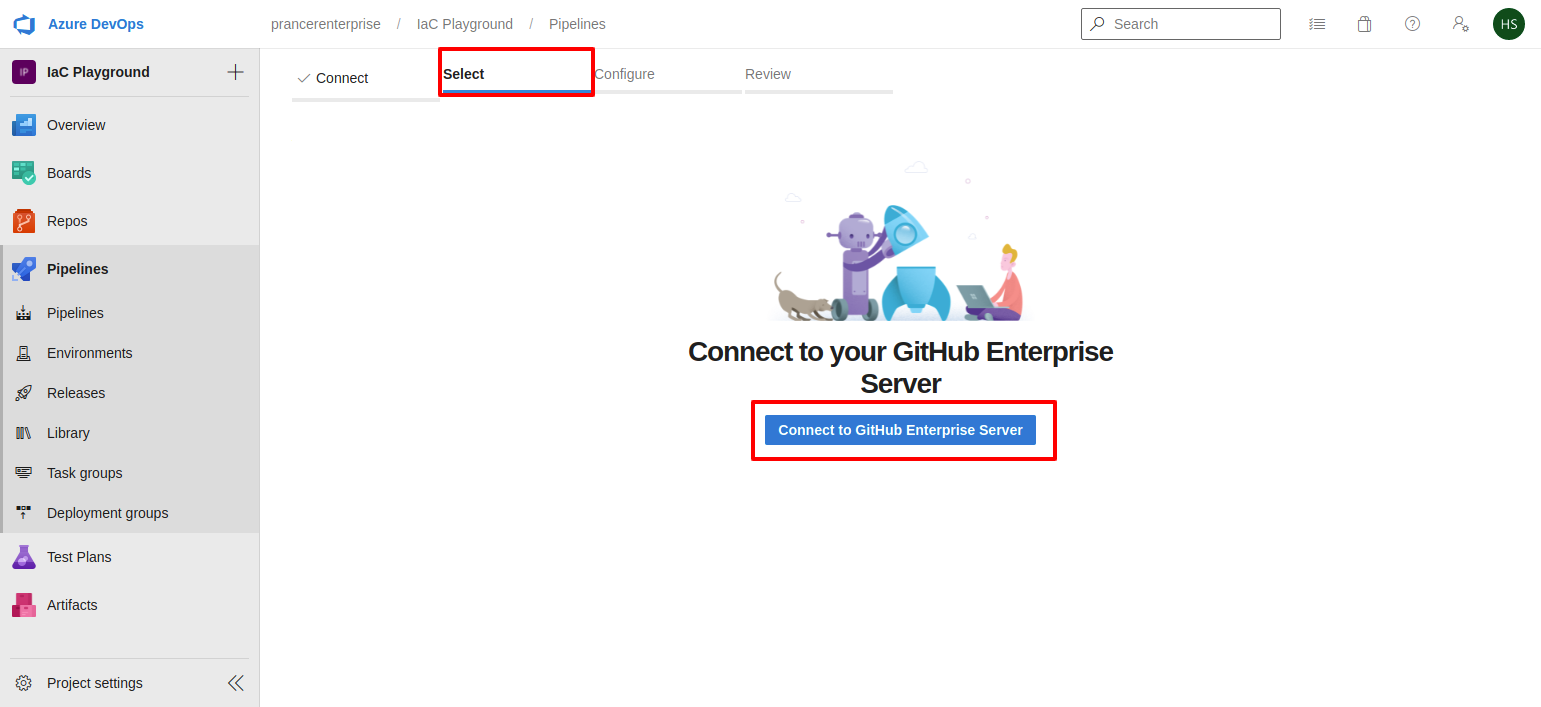

Click Connect to Github Enterprise Server.

!Connect

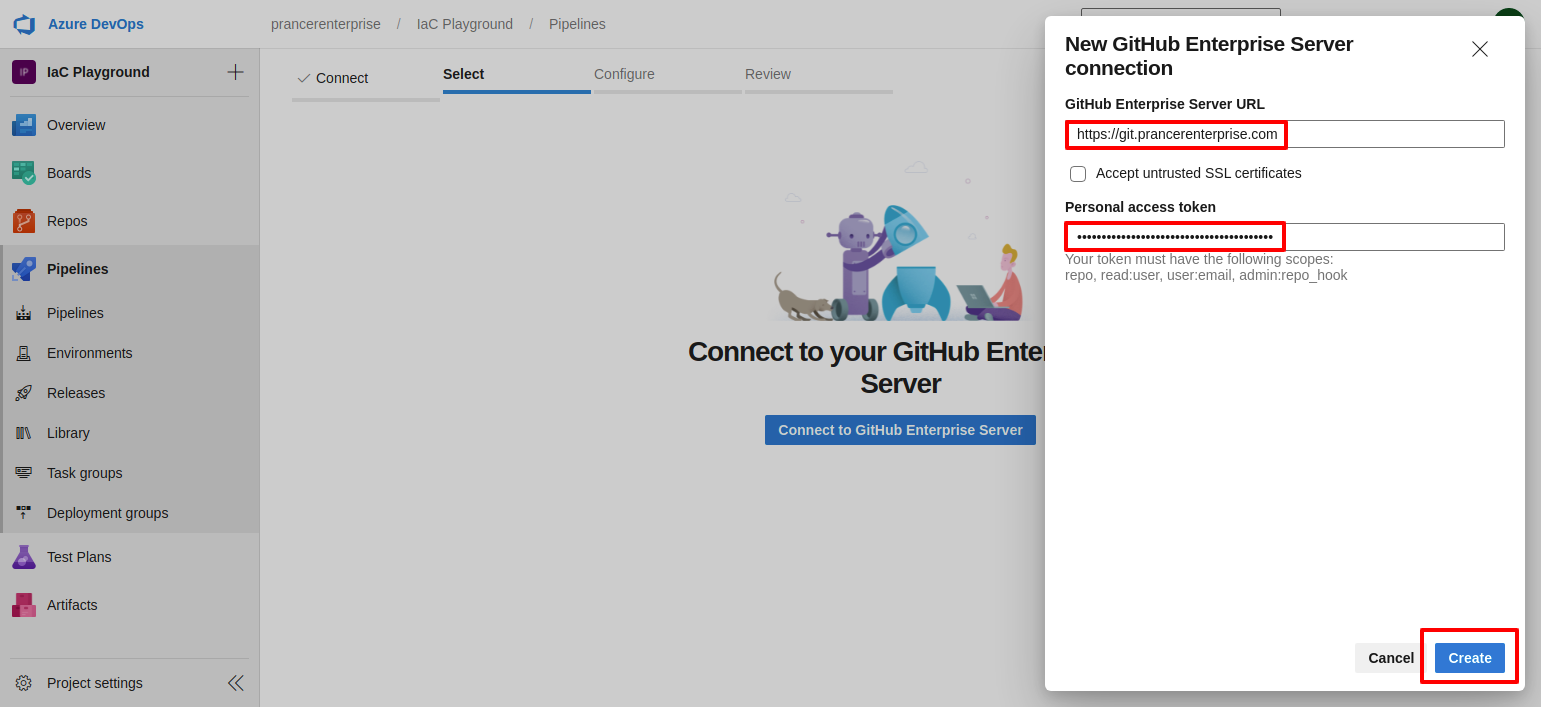

Enter the Enterprise Server URL and the GitHub PAT.

!Enter URL/PAT

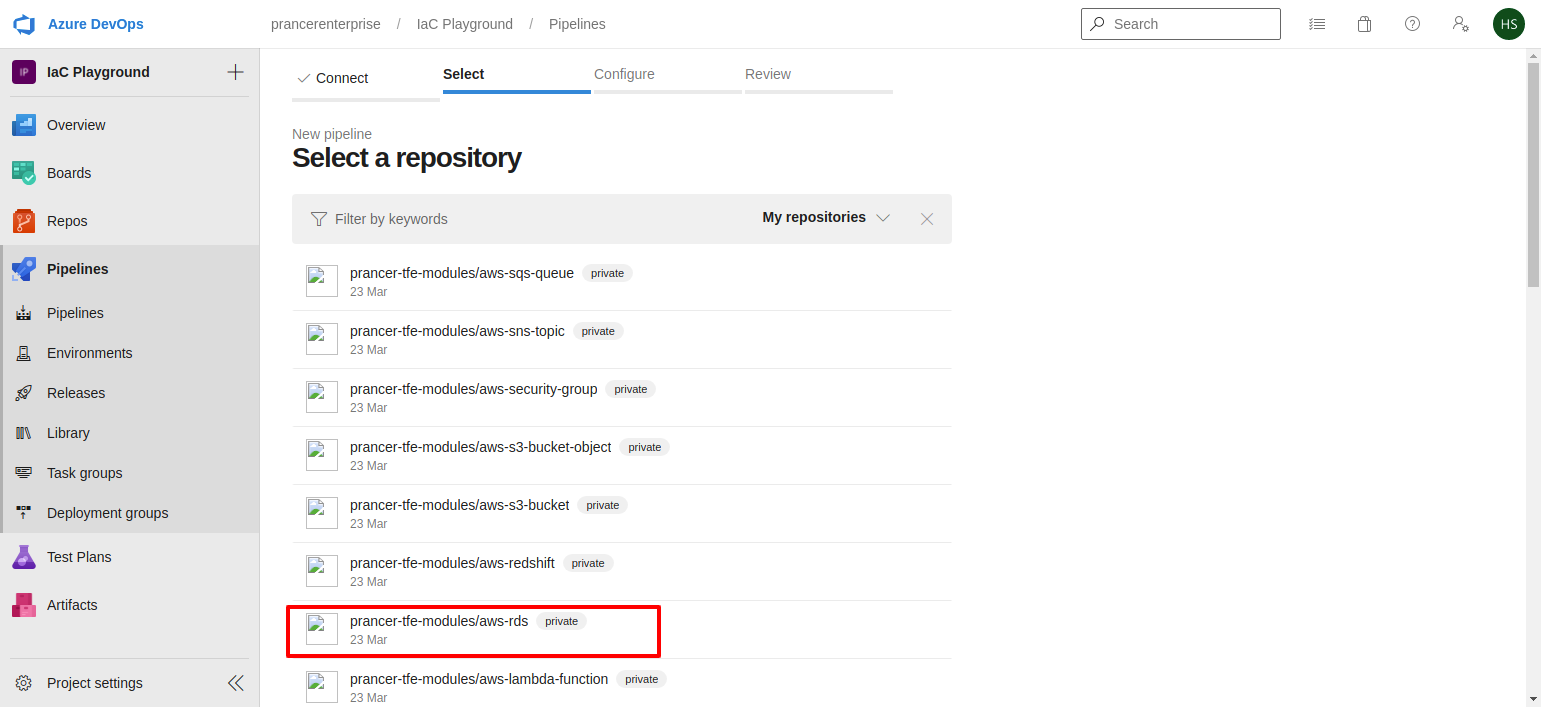

Pick the repo where the pipeline YAML will live.

!Pick repo

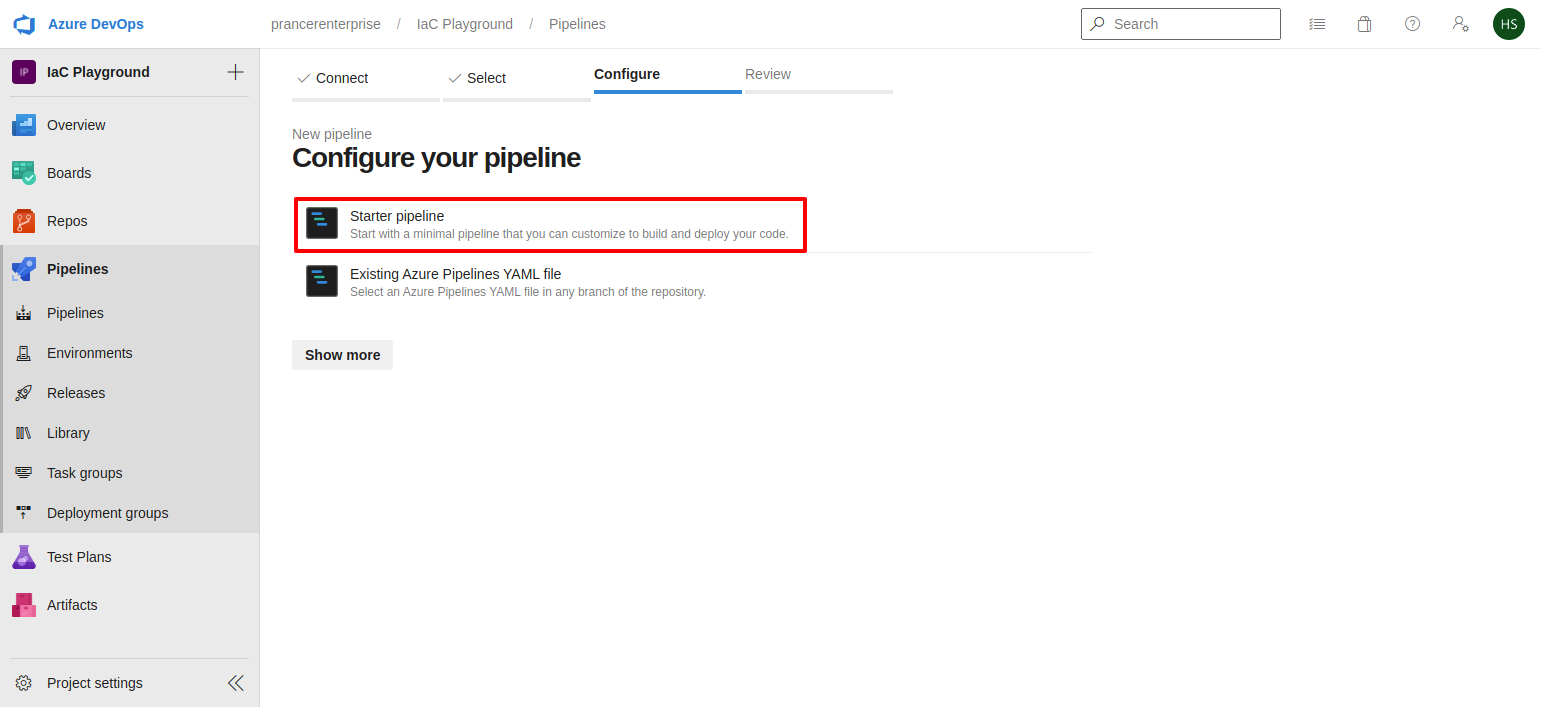

Choose Starter pipeline and paste one of the snippets below. Self-hosted agent required — Microsoft-hosted agents can't reach the Enterprise Server.

Warning: Update --company and the collection name (scenario_aws_githubEntNon) before running.

Option A — install prancer-basic on the agent

trigger:
  - master

resources:
  - repo: self

stages:
  - stage: prancer_static_code_analysis_for_iac
    jobs:
      - job: prancer_basic
        pool: "Default"
        steps:
          - bash: |
              echo "Setup start"

              # pip3
              if ! command -v pip3 &>/dev/null; then
                apt-get -y install python3-pip
              fi

              pip3 install -U prancer-basic

              # OPA
              if ! command -v opa &>/dev/null; then
                curl -L -o /usr/local/bin/opa https://openpolicyagent.org/downloads/v0.36.1/opa_linux_amd64_static
                chmod 755 /usr/local/bin/opa
              fi

              # Helm
              if ! command -v helm &>/dev/null; then
                snap install helm --classic
              fi

              prancer --db REMOTE \
                --company liquware \
                --apitoken "${APITOKEN}" \
                --gittoken "${GITTOKEN}" \
                scenario_aws_githubEntNon
            env:
              GITTOKEN: $(GITTOKEN)
              APITOKEN: $(APITOKEN)

Option B — run prancer-basic from a Docker image

trigger:
  - master

resources:
  - repo: self

stages:
  - stage: prancer_basic_setup_pipeline
    displayName: "Prancer Static Code Analysis for IaC"
    jobs:
      - job: prancer_basic
        pool: "Default"
        steps:
          - bash: |
              mkdir prancer && cd prancer

              # Latest prancer-basic version
              curl -L -o setup.py https://raw.githubusercontent.com/prancer-io/cloud-validation-framework/master/setup.py
              version=$(grep -i 'version=' setup.py | sed -e "s/version='//" -e "s/',//" -e 's/ //g')

              mkdir helmdir opadir
              curl -L -o opadir/opa https://openpolicyagent.org/downloads/v0.36.1/opa_linux_amd64_static
              chmod 755 opadir/opa
              curl -L -o helmdir/helm-v3.8.1-linux-amd64.tar.gz https://get.helm.sh/helm-v3.8.1-linux-amd64.tar.gz
              tar -zxvf helmdir/helm-v3.8.1-linux-amd64.tar.gz -C helmdir
              chmod 755 helmdir/linux-amd64/helm

              cat > Dockerfile <<EOF
              FROM python:3.9-alpine3.15
              ENV APP_VERSION=$version
              RUN apk update && apk upgrade && apk add git build-base libffi-dev openssl-dev
              COPY opadir/opa /usr/local/bin/opa
              RUN chmod +x /usr/local/bin/opa
              COPY helmdir/linux-amd64/helm /usr/local/bin/helm
              RUN chmod +x /usr/local/bin/helm
              RUN pip install ply
              RUN pip install prancer-basic==$version
              EOF

              docker build -t prancer-basic:${version} -f Dockerfile .
              docker container run prancer-basic:${version} \
                prancer --db REMOTE --company liquware \
                --apitoken "${APITOKEN}" --gittoken "${GITTOKEN}" \
                scenario_aws_githubEntNon
            env:
              GITTOKEN: $(GITTOKEN)
              APITOKEN: $(APITOKEN)

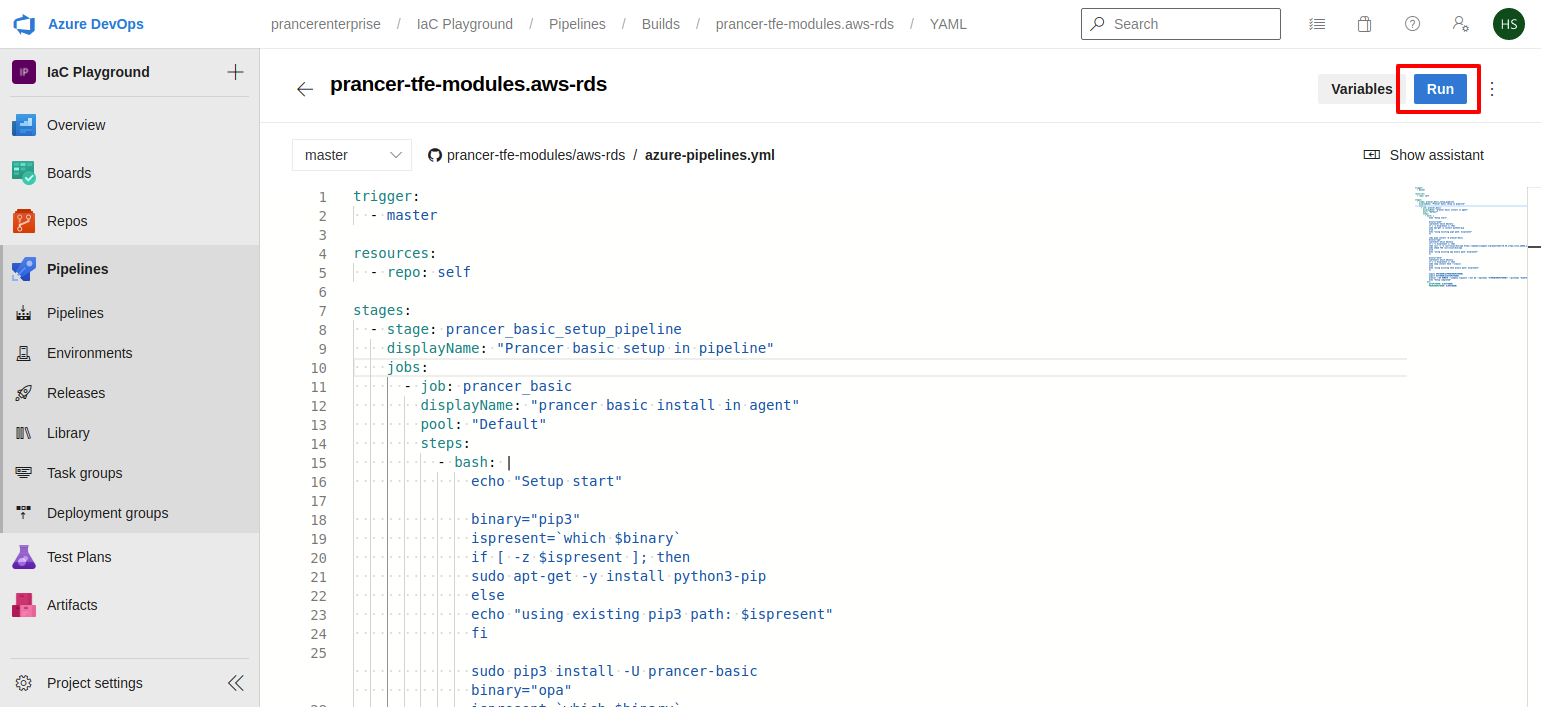

!Pipeline editor

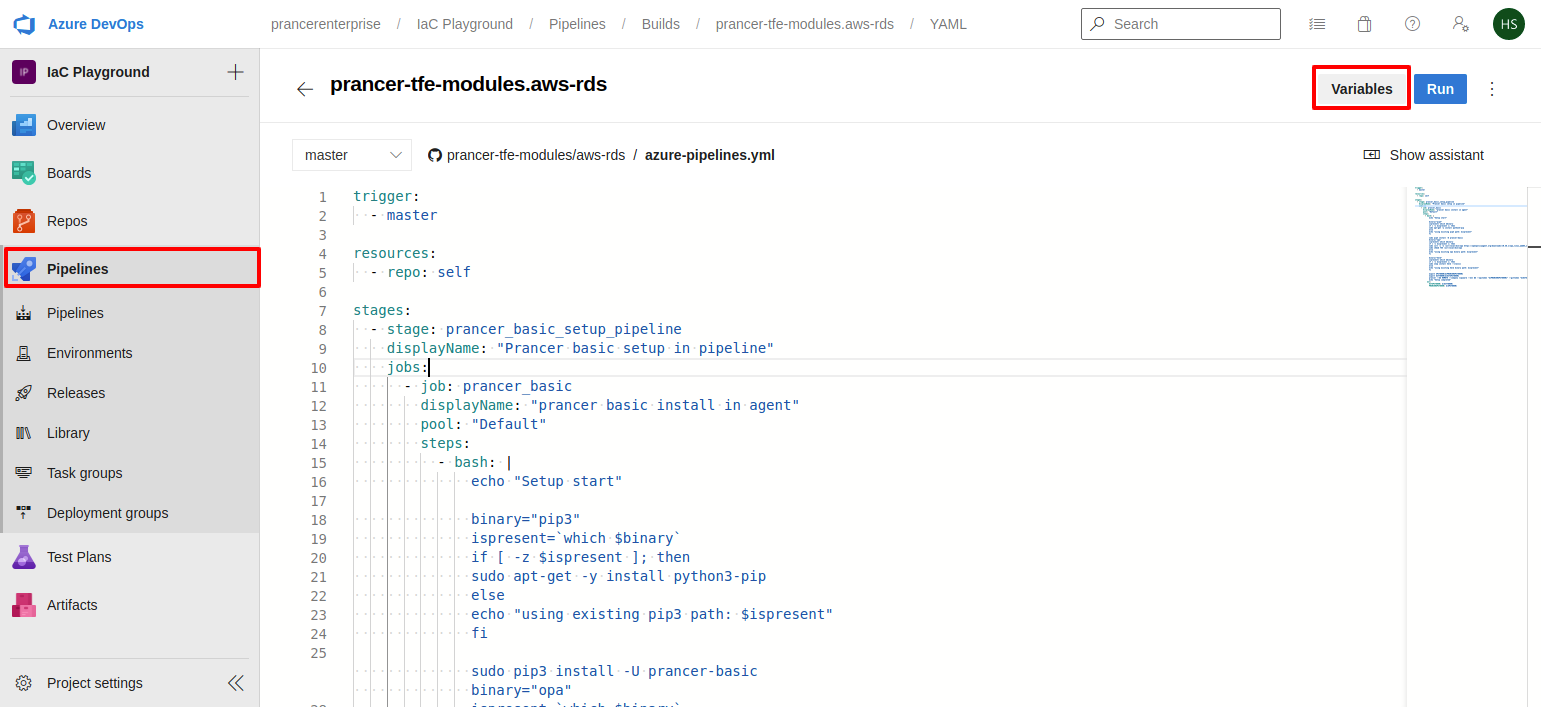

Click Variables in the top-right.

!Variables

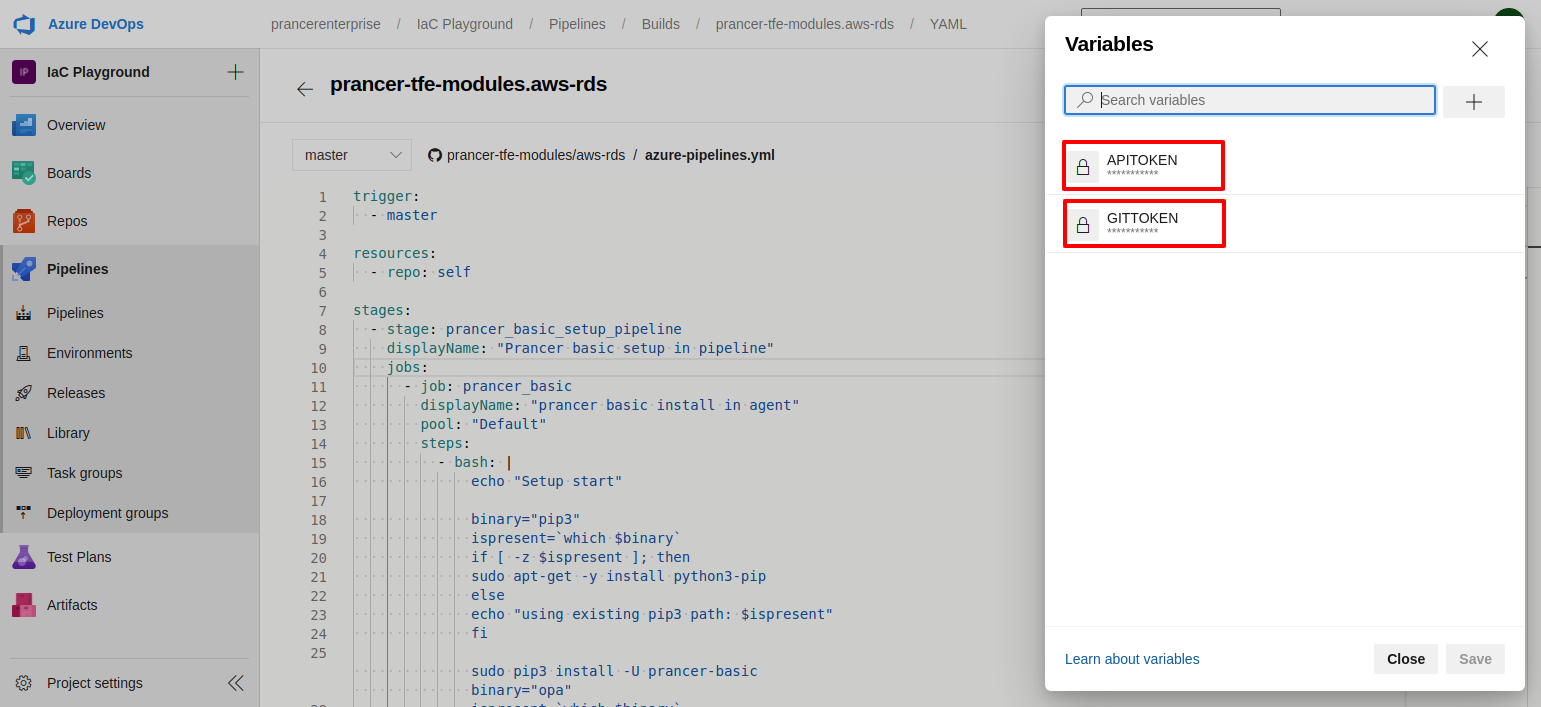

Create:

| Variable | Source |

| --- | --- |

| GITTOKEN | GitHub Enterprise PAT (step 3). |

| APITOKEN | Prancer User Access Token (step 2). |

Mark both as secret.

!Variables saved

5. Run and review

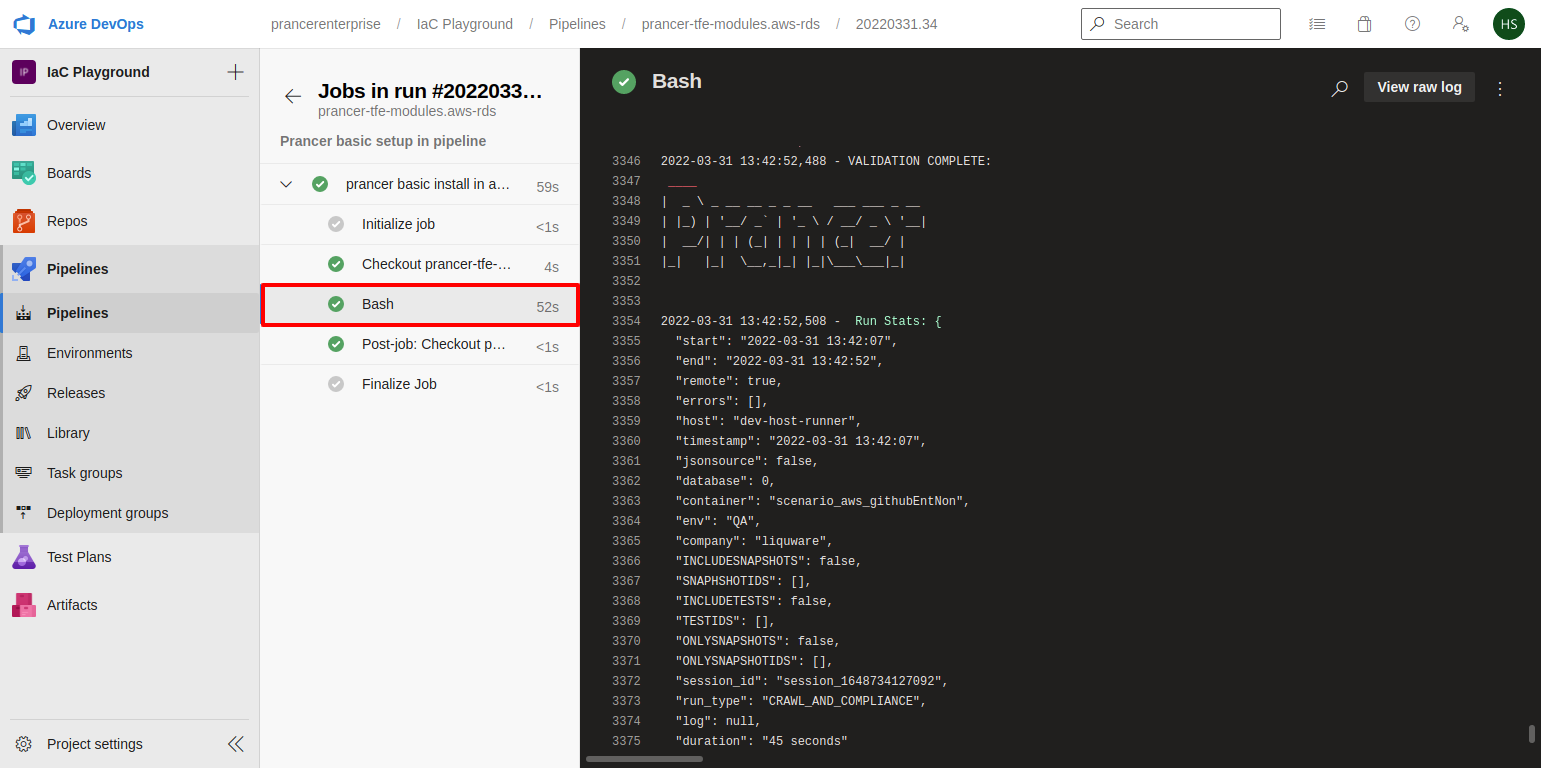

Save and run the pipeline. The first run installs pip3, opa, helm, and prancer-basic on the agent (Option A) and then ships findings to Prancer SaaS.

!Run output

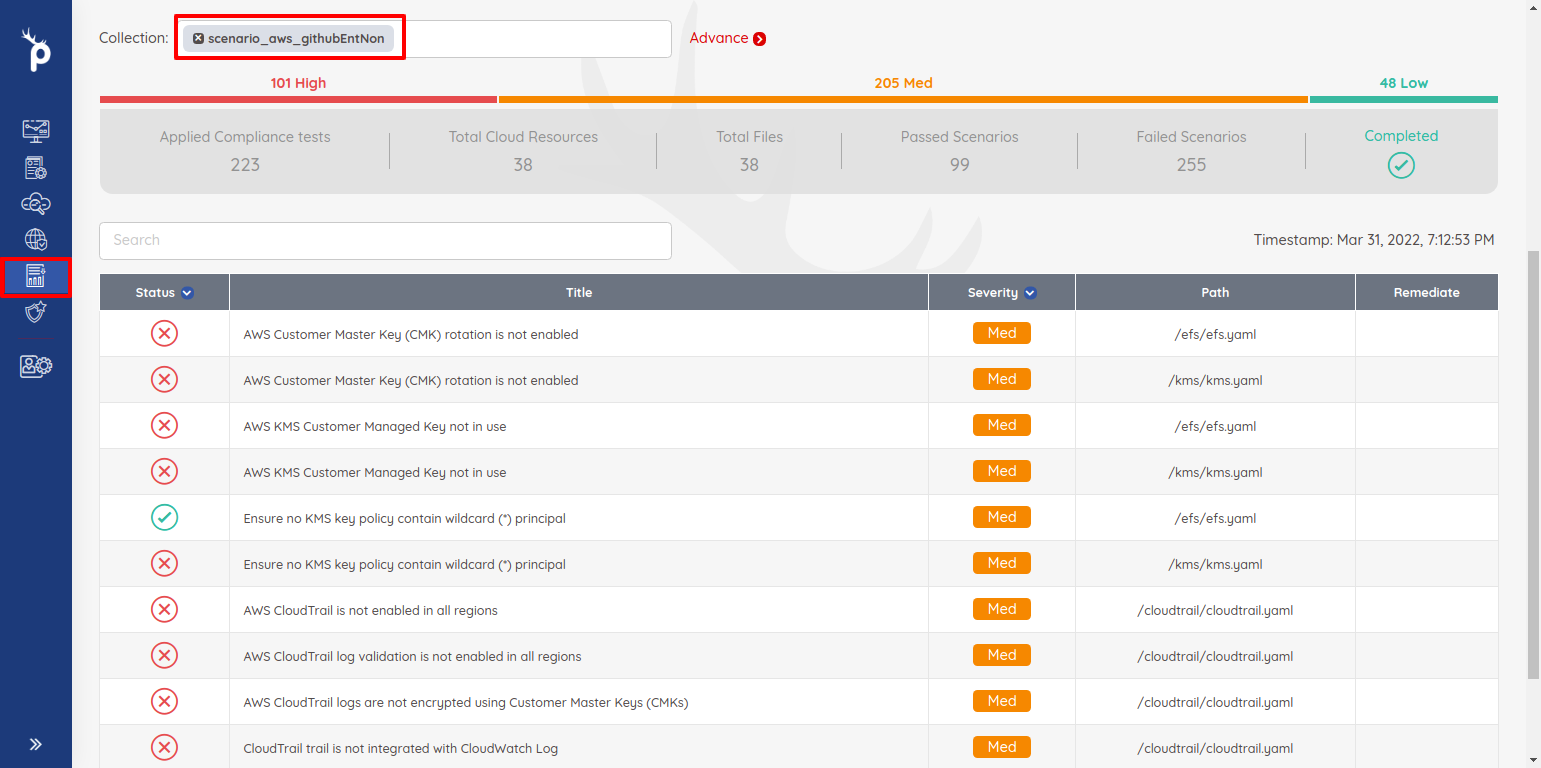

Open Infra Findings in the Prancer Portal to view results.

!Findings

Tip: Cache pip, opa, and helm on the self-hosted agent to keep subsequent runs fast.
